Artizan™ Max FRP Wall Protection
Maximum Design meets Maximum Defense in high-traffic, high-use spaces.

Transform Interiors without compromise

Reimagine building interiors with Marlite® Artizan™ Max Fiberglass Reinforced Plastic (FRP). Our next-generation wall protection panels combine breakthrough digital print technology with a flooring-grade protective shield that provides unprecedented toughness.

The result: wall protection that delivers maximum design freedom and maximum durability.

Marlite Artizan Max is perfect for healthcare, education, retail, food service, offices and any environment demanding both superior protection and design flexibility. It’s the only wall protection system that combines the durability of commercial wall protection with the sophistication of designer wall coverings.

Panel Specifications:

  • 4’ x 8’ x 3/32” (nominal)
  • 4’ x 10’ x 3/32” (nominal)
  • PVC-Free Panels

Approvals & Certifications:

  • Class I/A Fire Rating (ASTM E-84)
  • Class III/C Fire Rating (ASTM E-84)
  • Mold & Mildew Resistant (ASTM D3273)
  • Fungal & Bacteria Resistant (ASTM G21/G22)
  • Meets USDA/FSIS Requirements
  • UL GreenGuard Certified

Uses:

  • Wall Protection
  • Branding/Graphics
  • Murals
  • Wayfinding



  • Headwalls

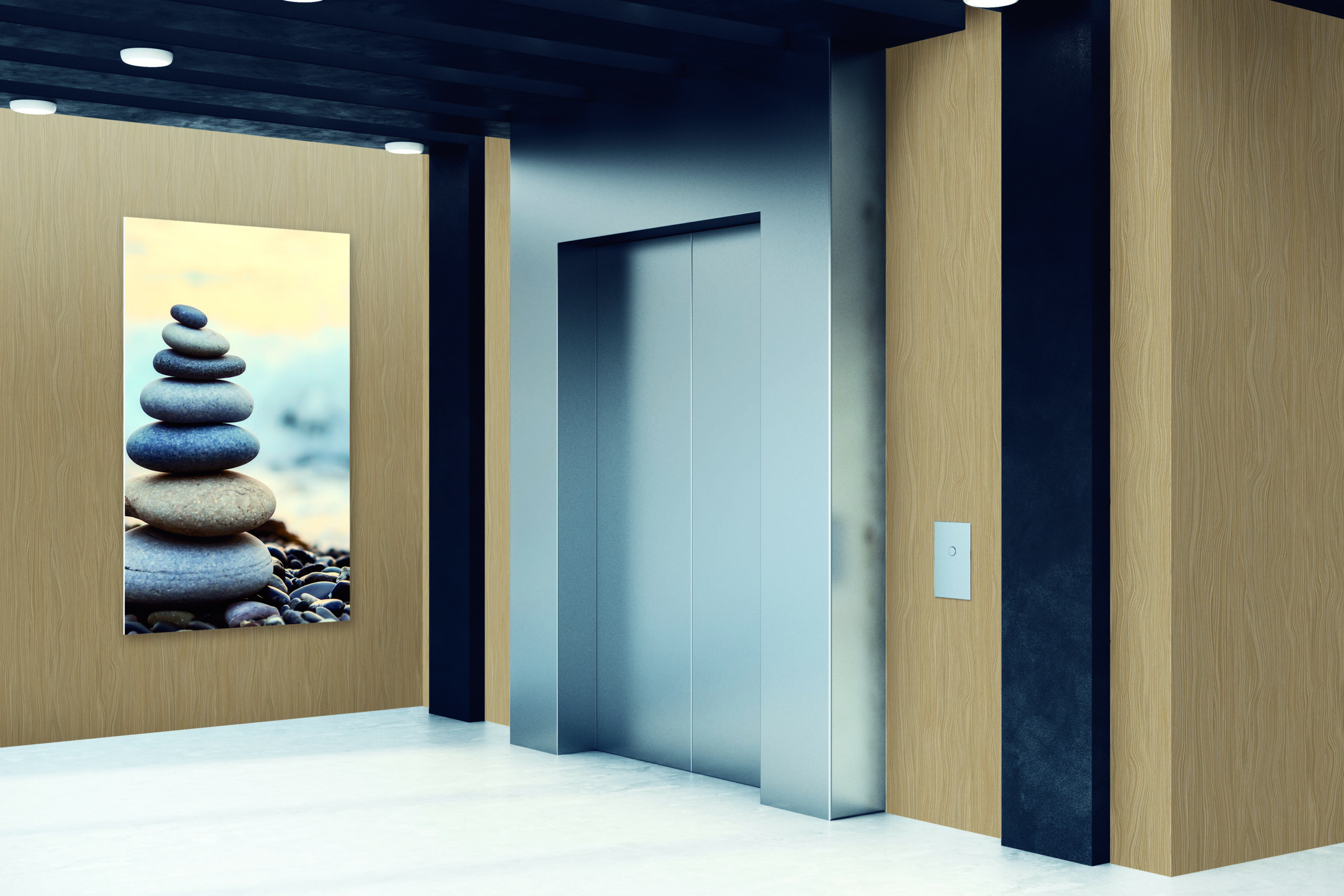

  • Elevator Cabs
  • Corridors
Features

Wall protection panels that reveal every visual detail

Dramatization of large ink droplets versus small ink droplets.

Stunning digital print quality

Marlite Artizan Max redefines what’s possible in protection for walls through groundbreaking advances in style and strength. Our revolutionary print technology creates exceptional visual detail at 1000 dots per inch (DPI)—far beyond what even the human eye can detect.

Even the smallest elements of your design maintain stunning clarity and precision, whether you’re showcasing intricate patterns, photographic murals, or brand elements.

Protective wall panels without division molding

Just as critical, we’ve engineered every wall protection panel with precision-squared 90° angles, enabling seamless installation without division molding and uninterrupted visual impact that stands up to daily abuse.

The result: no need for division molding. Simply slide panels together.

Right angle showing 90 degrees.
Technical drawing showing no division needed and sliding panels together.

Custom FRP with safety and sustainability built in

Artizan Max doesn’t just protect walls—it protects people and the environment, too. Our panels meet rigorous Class I/A and Class III/C fire ratings for enhanced safety in commercial environments. Plus, they’re GREENGUARD certified, which means they’ve been scientifically proven to meet some of the world’s most rigorous third-party chemical emissions standards.

Artizan Max ensures both superior fire safety and healthier indoor air quality for high-use spaces.

Maximum Design

1. Select from our Standard Collections

With Artizan Max, you can choose from our newest collections, extensive online gallery of inspired designs, or bring your unique vision to life by uploading custom artwork. With no minimum order quantities and free samples available, exploring possibilities has never been easier.

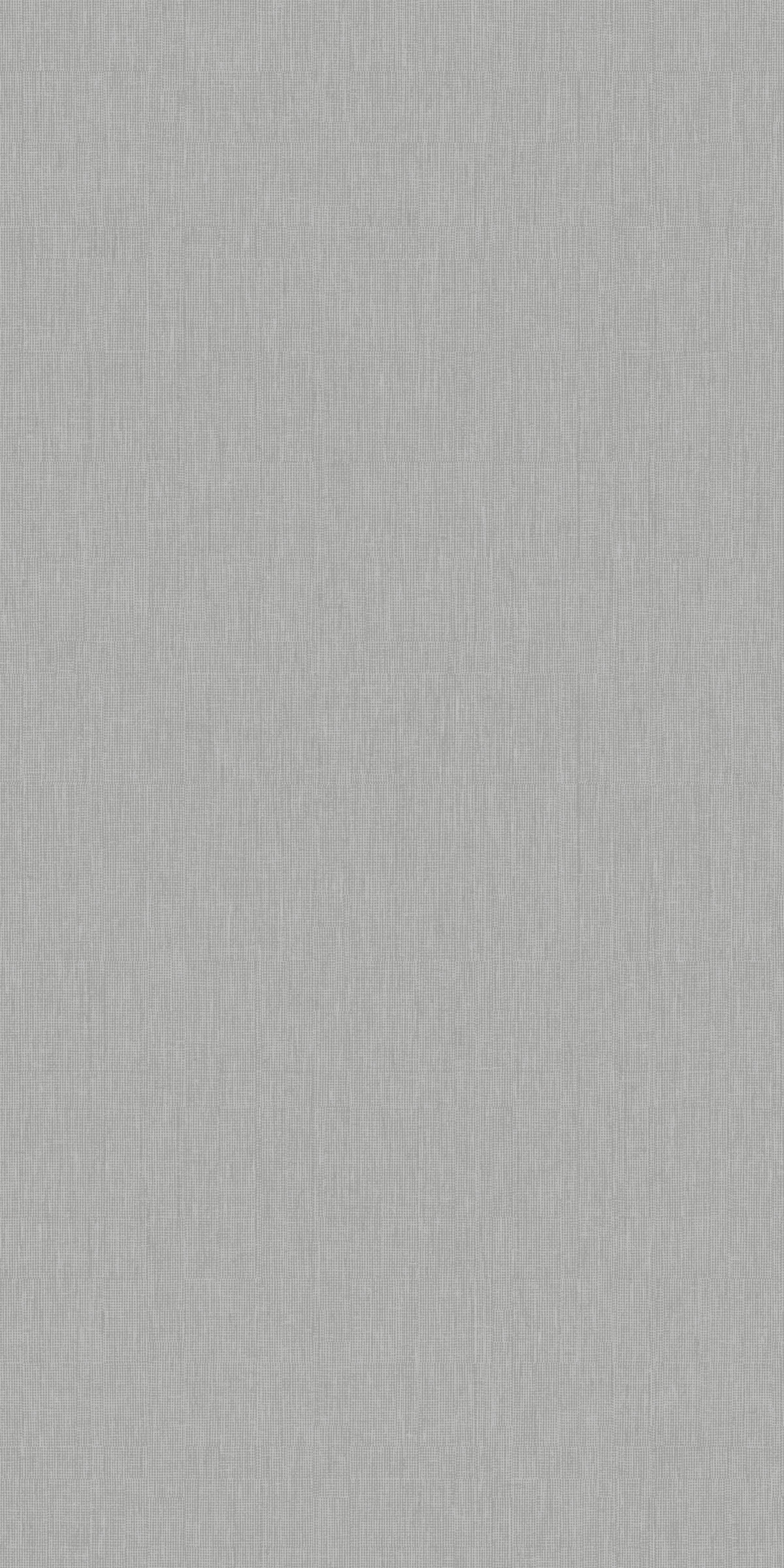

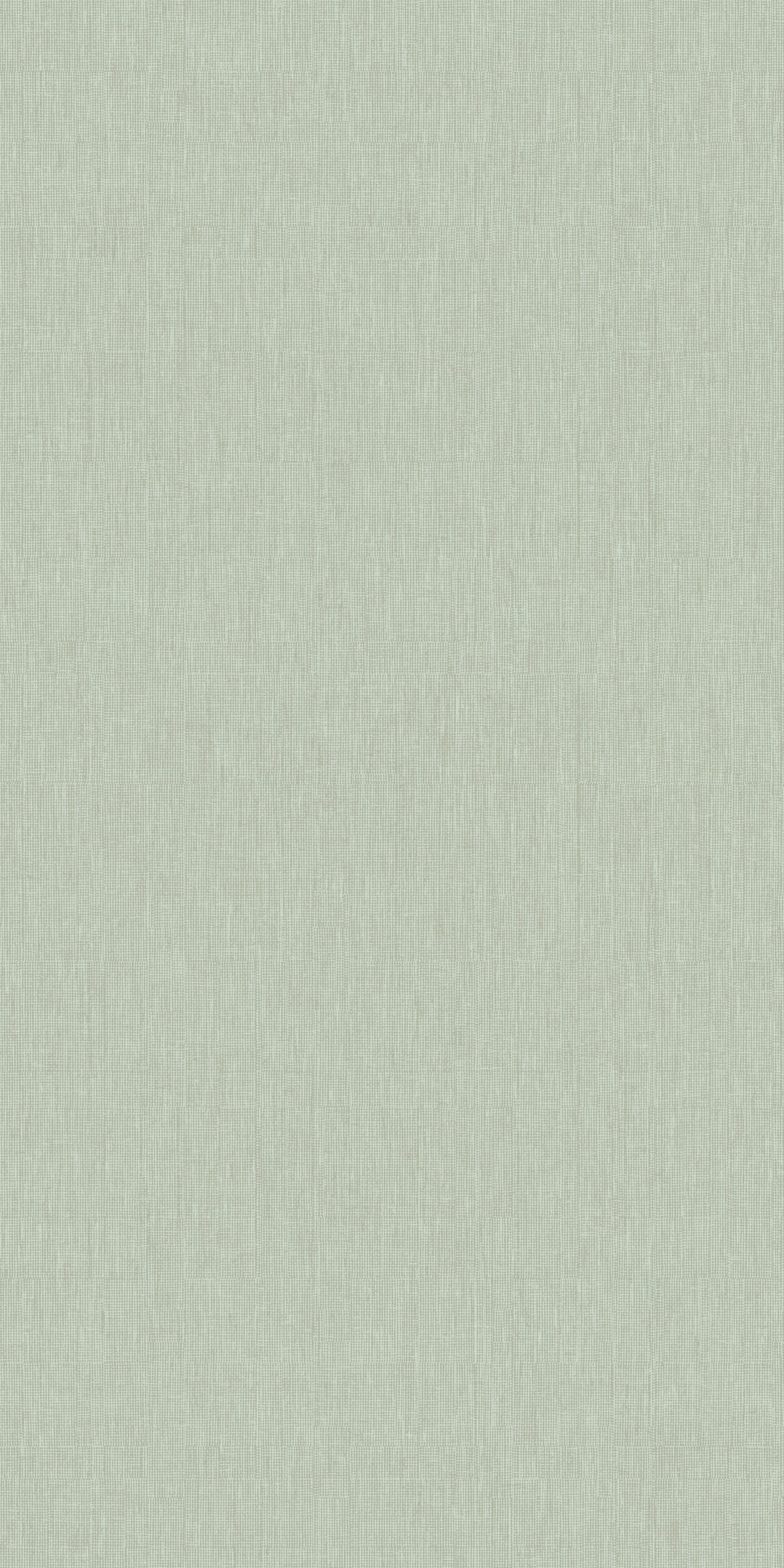

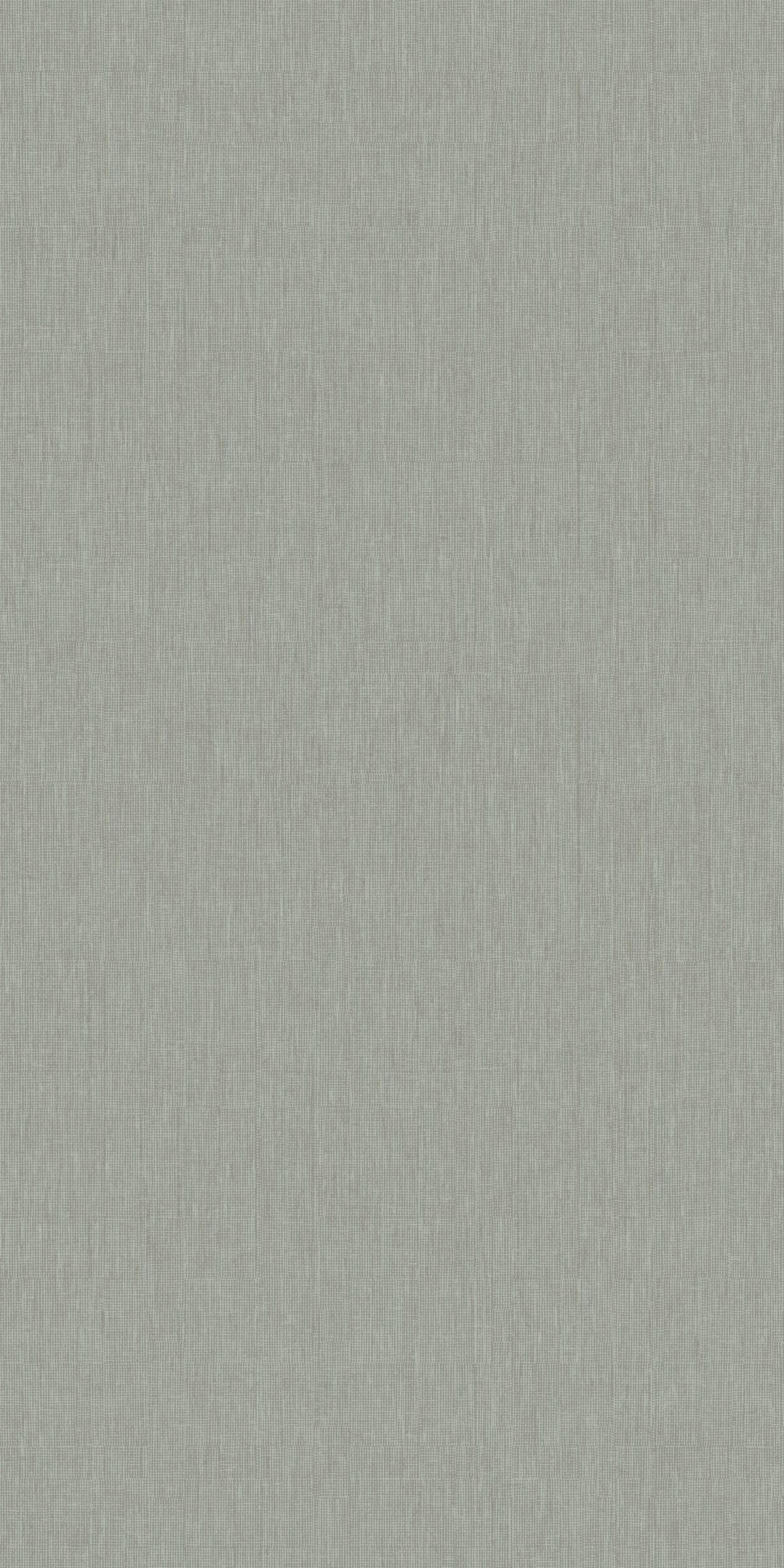

Iron Threads
8 Colorways

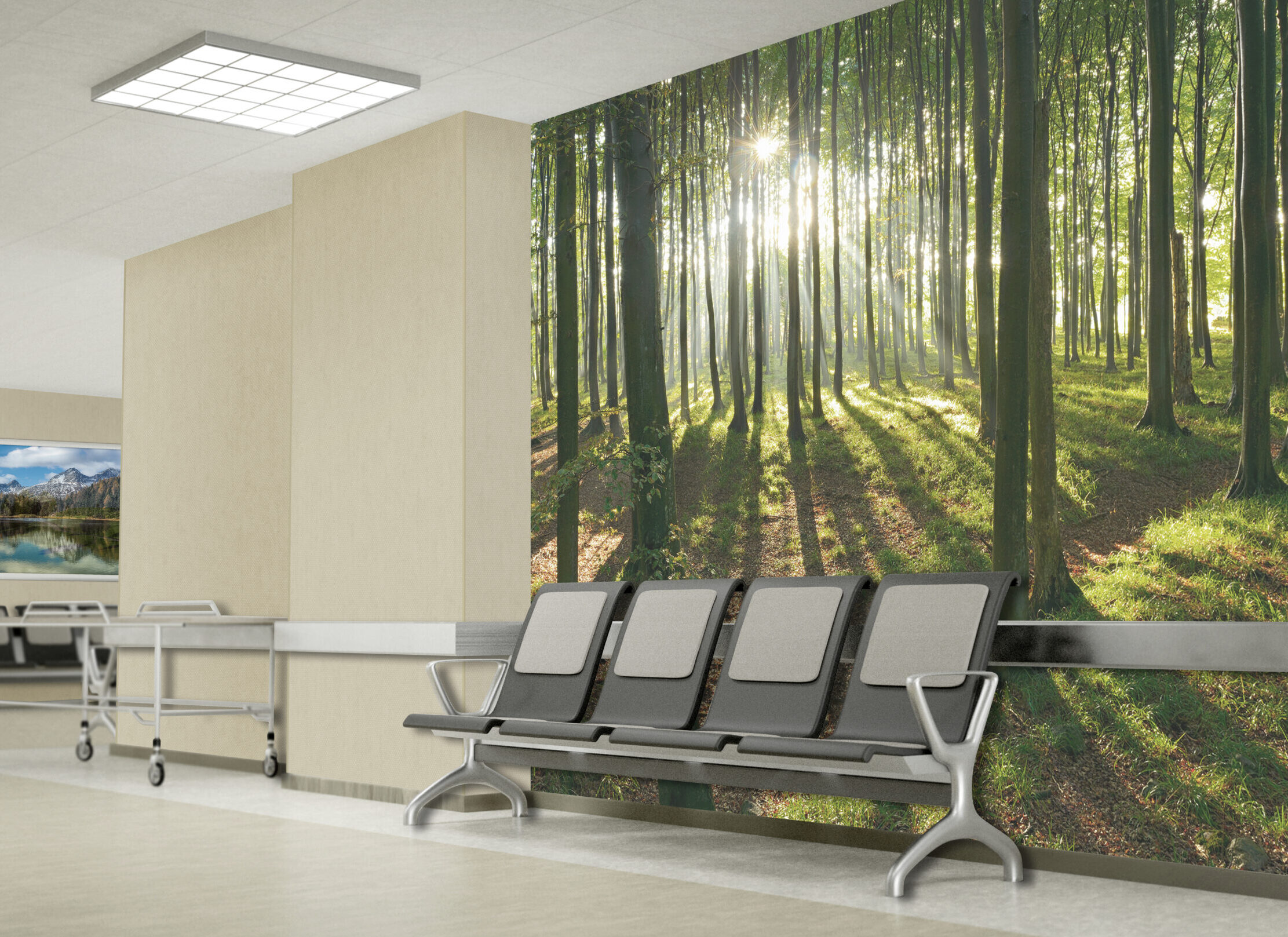

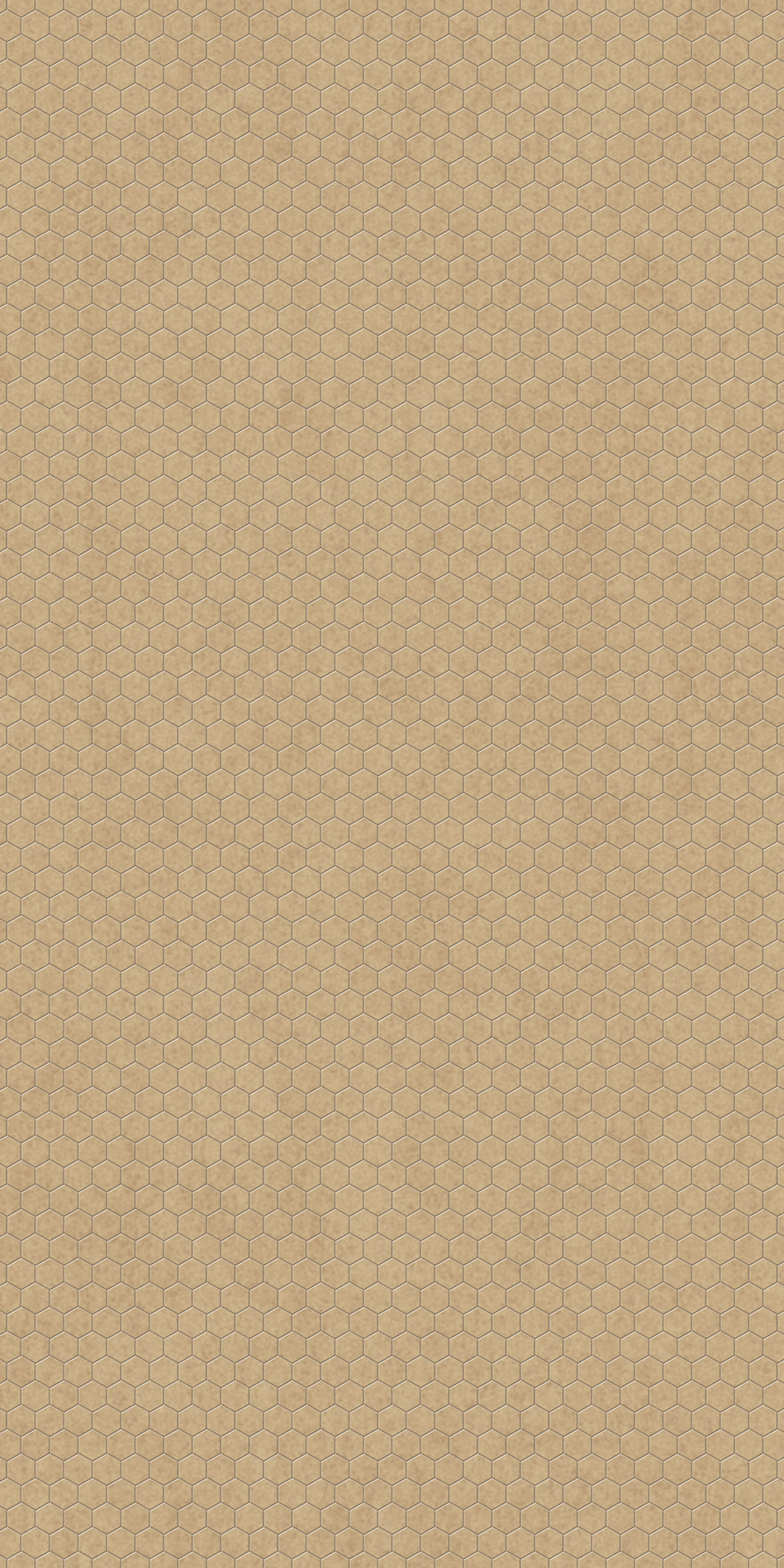

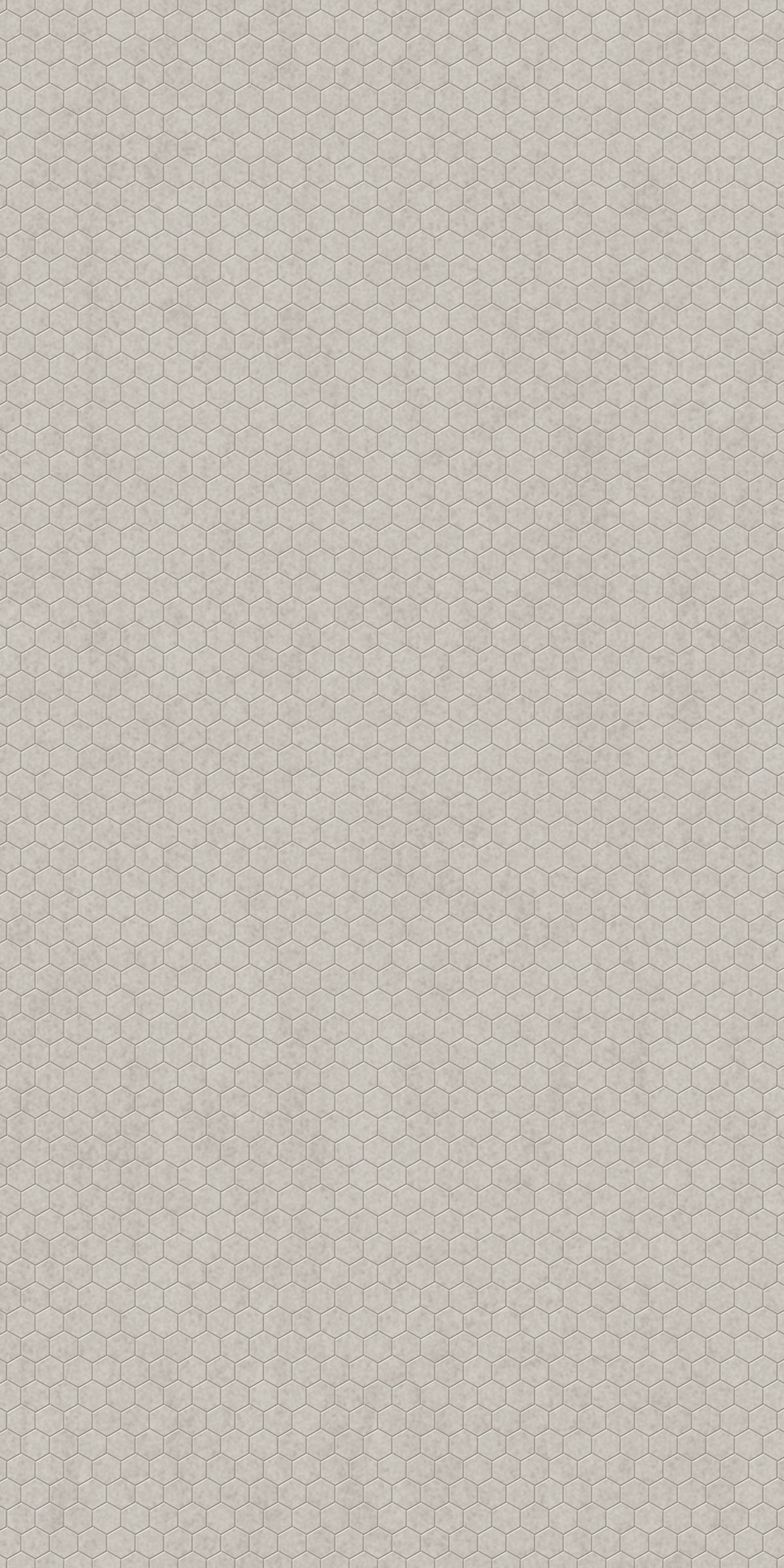

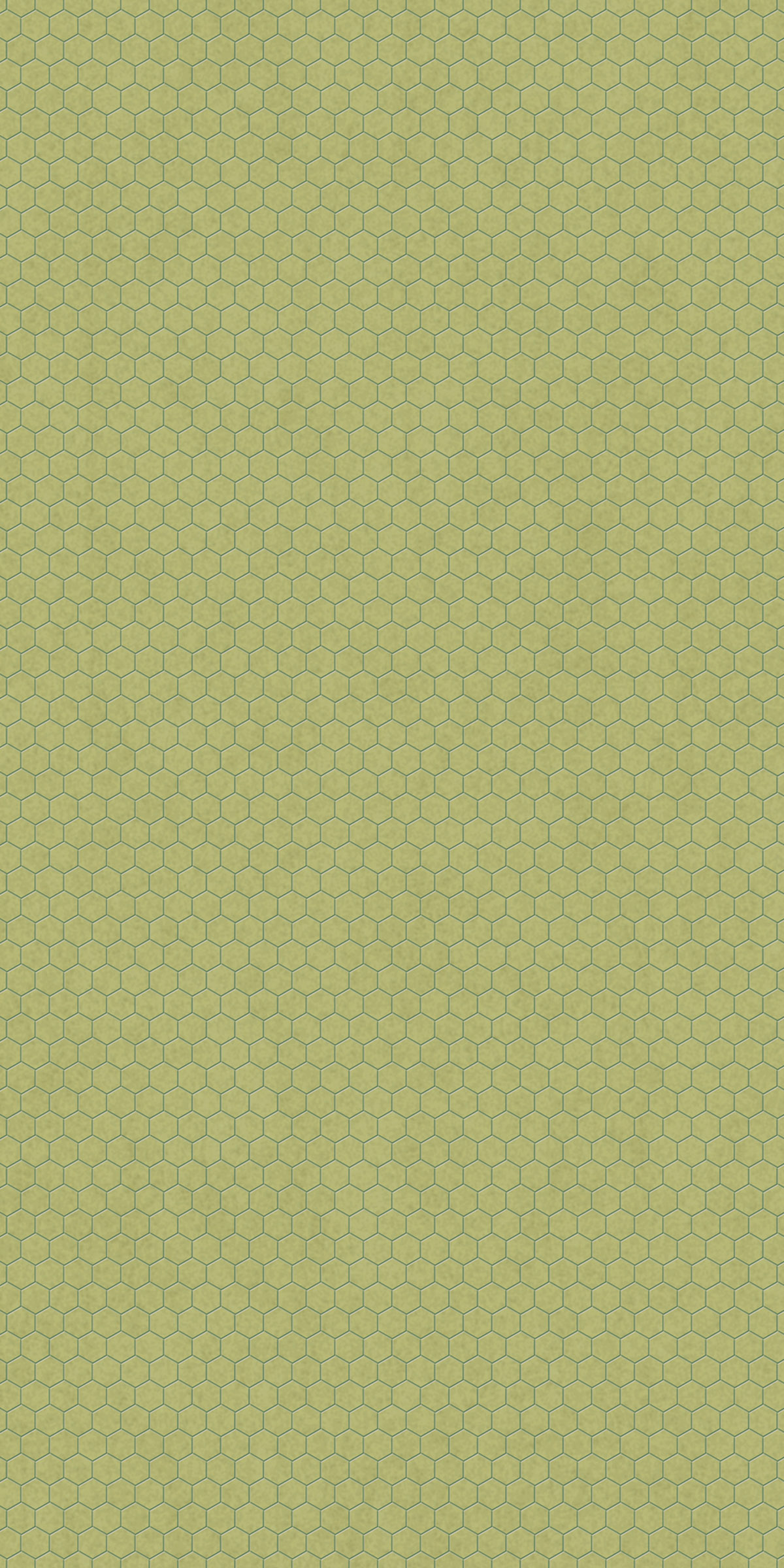

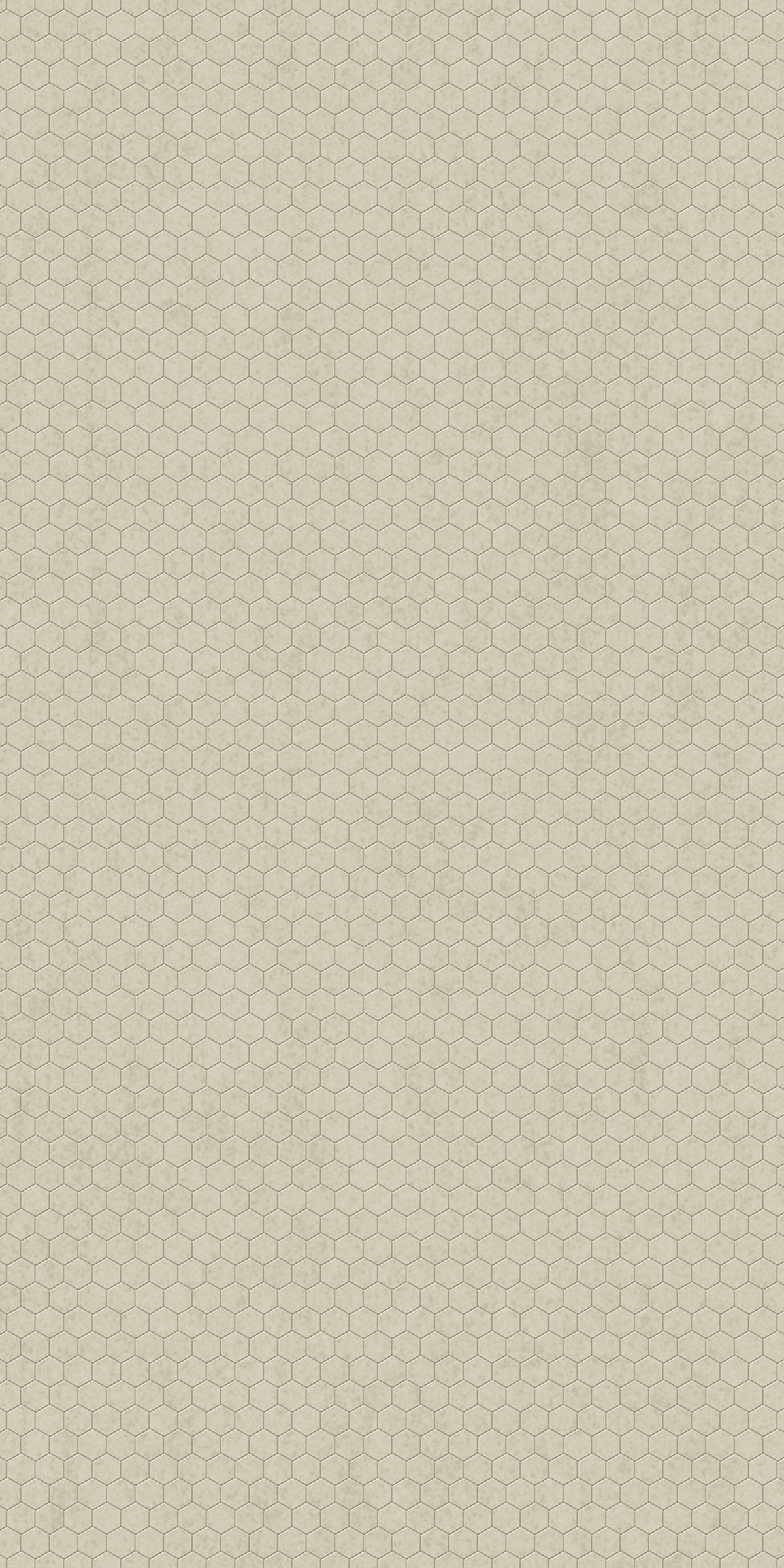

Cozy
8 Colorways

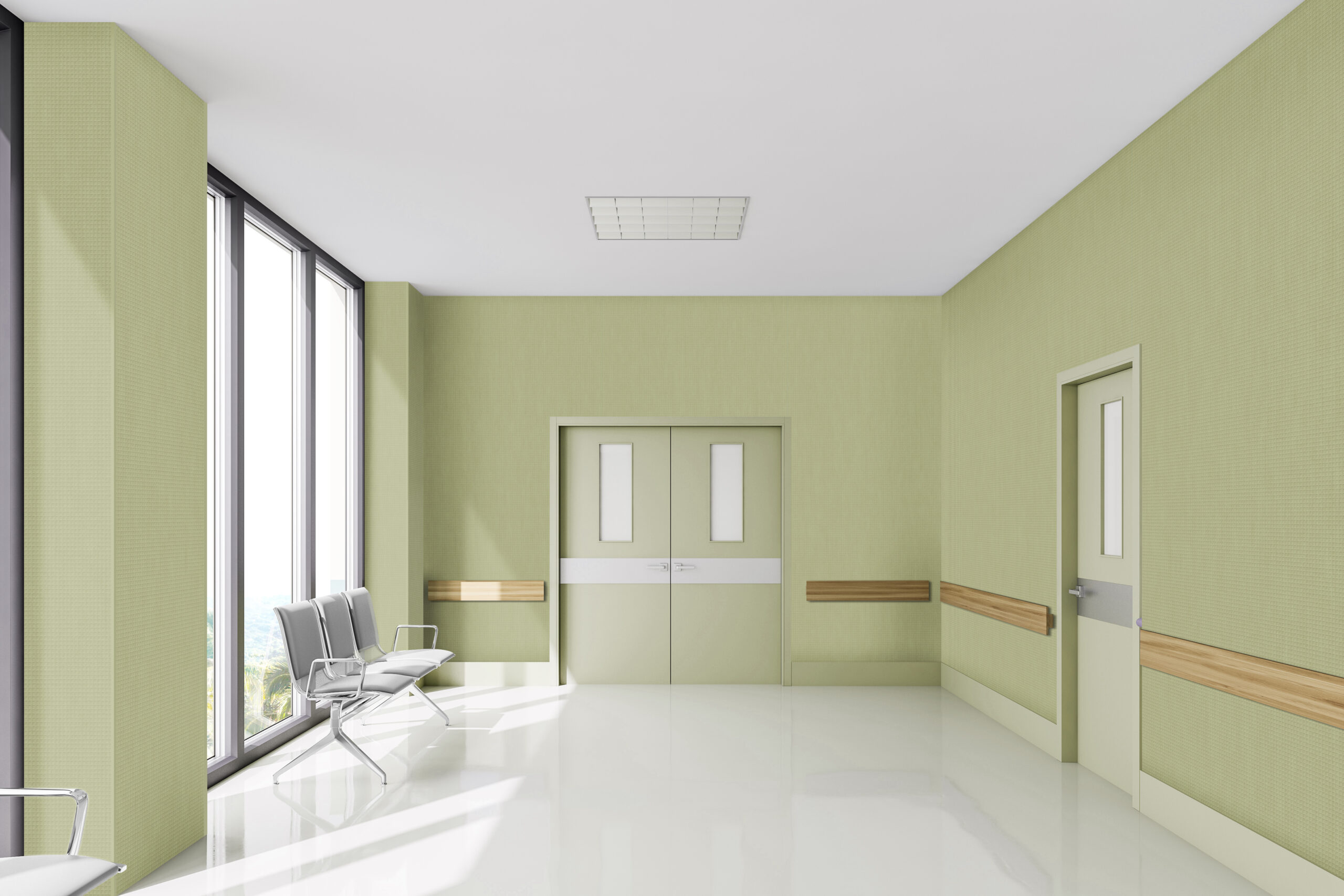

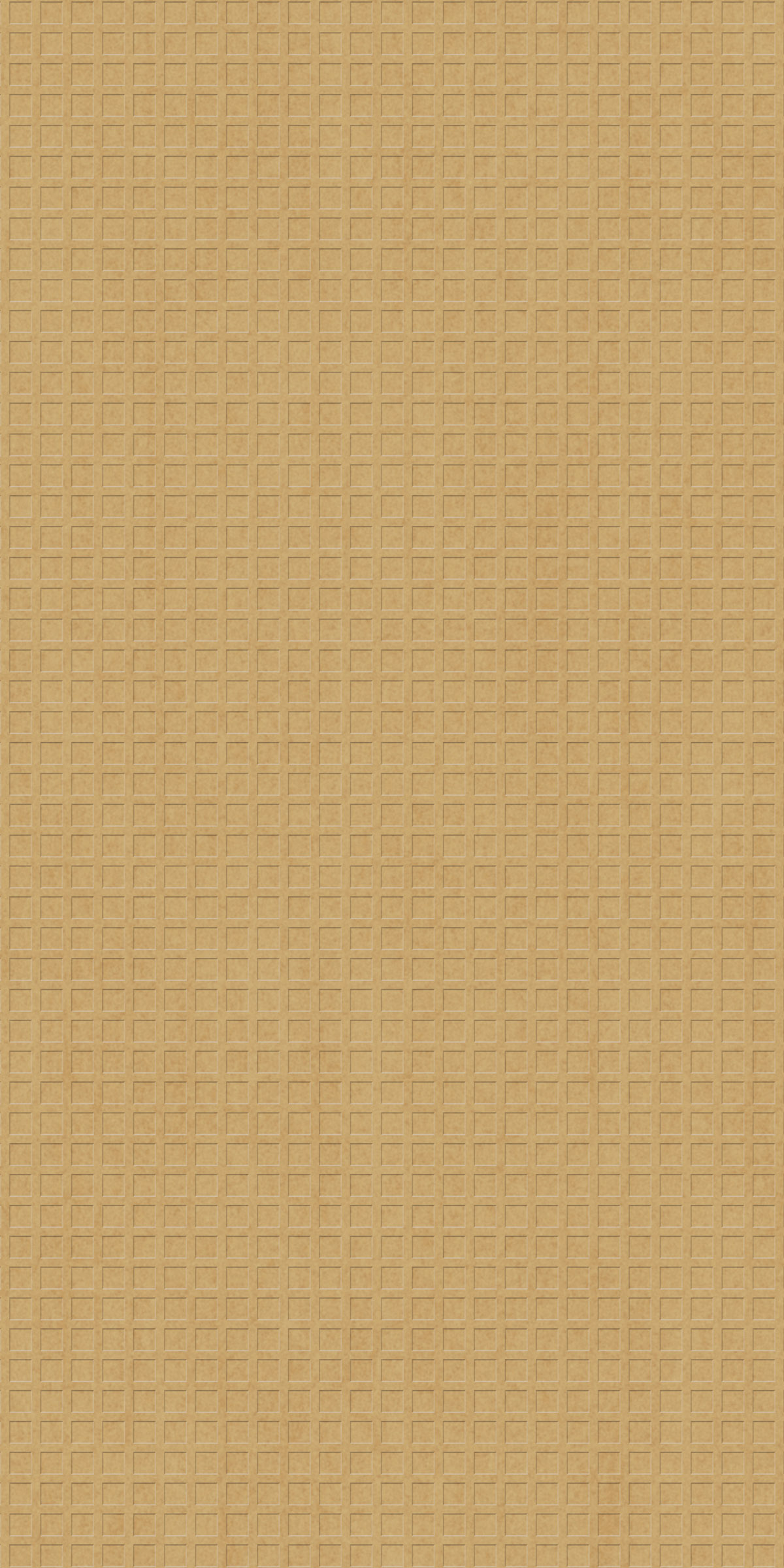

Coffered
10 Colorways

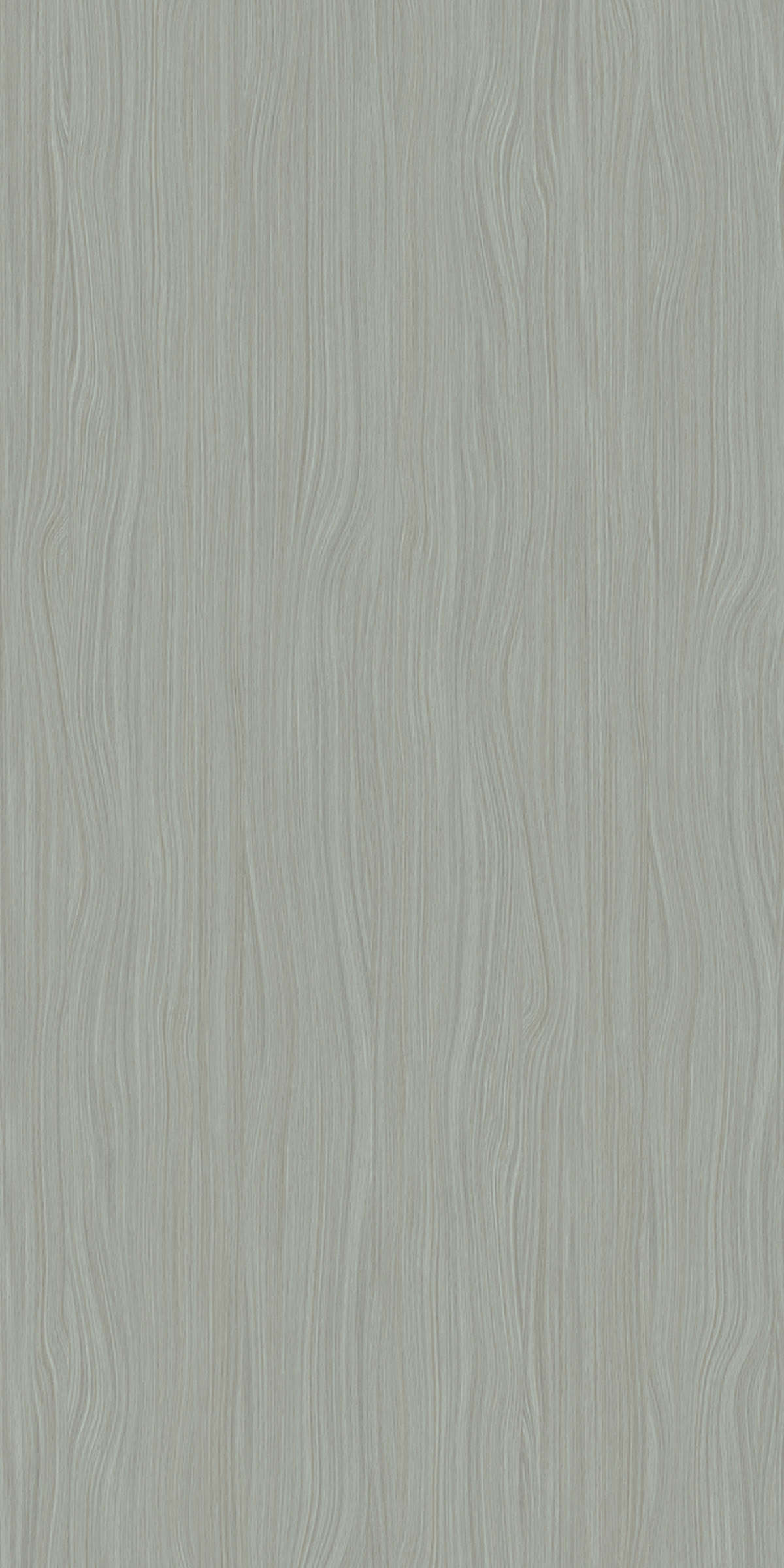

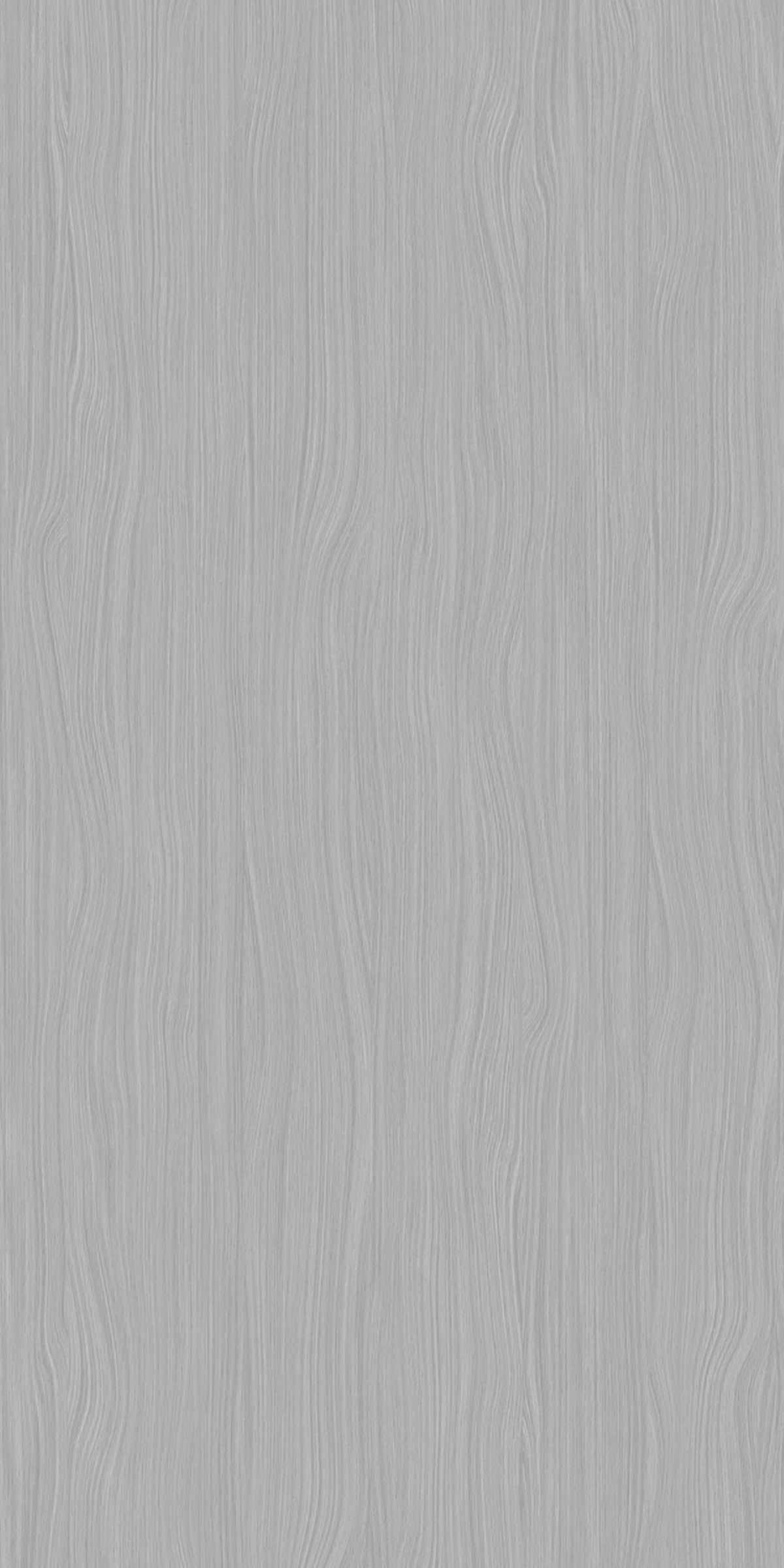

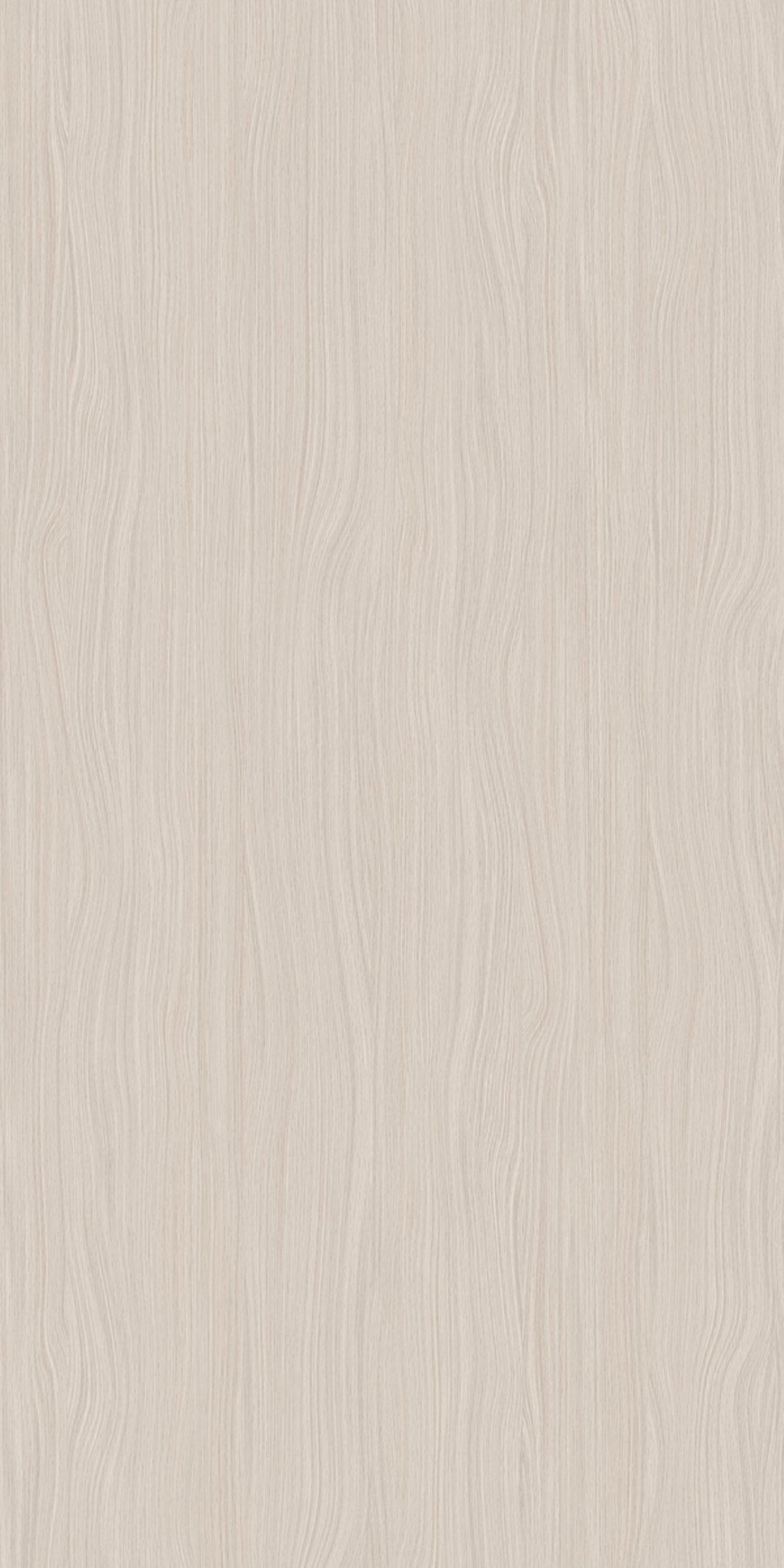

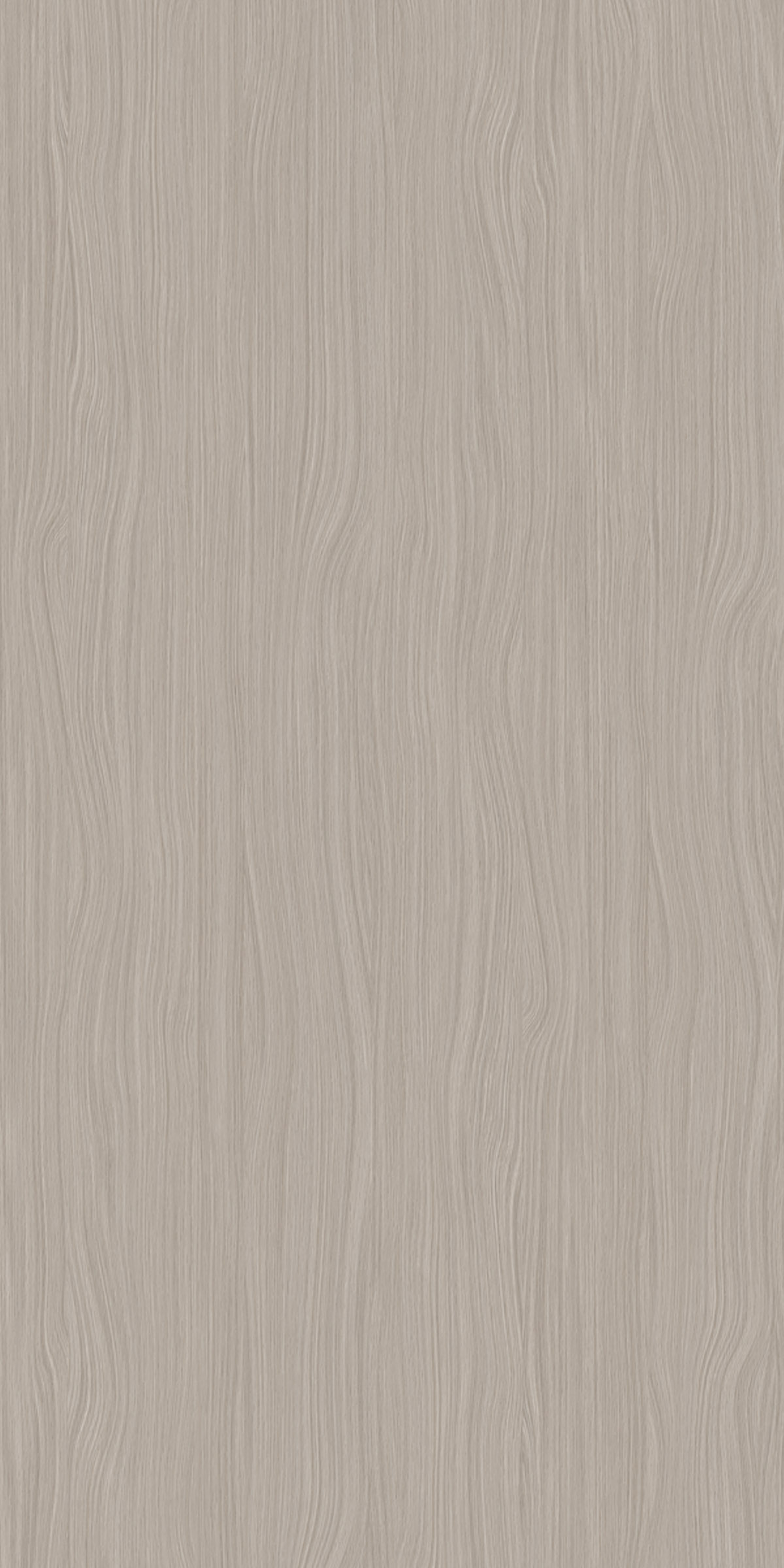

Ash
8 Colorways

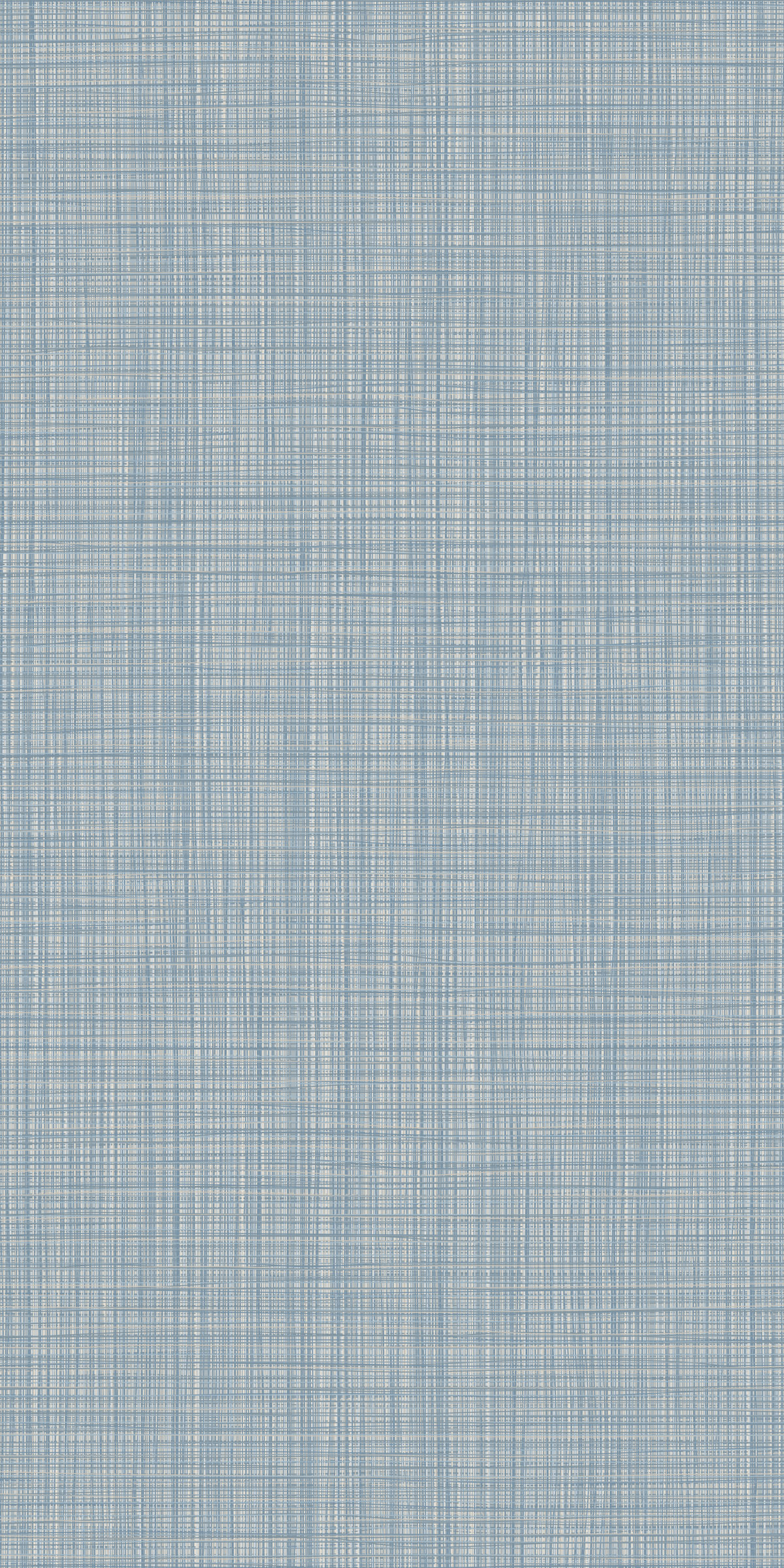

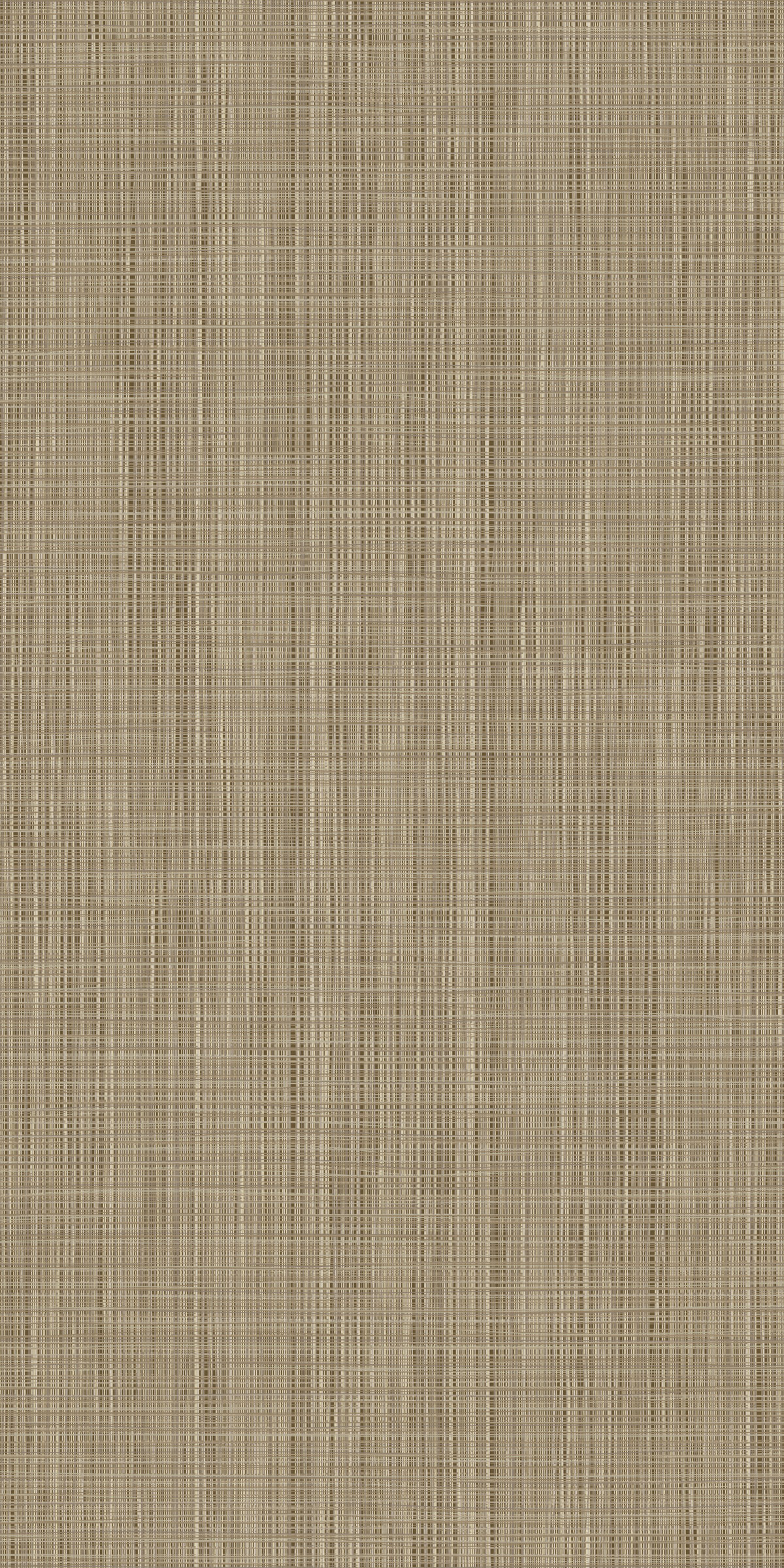

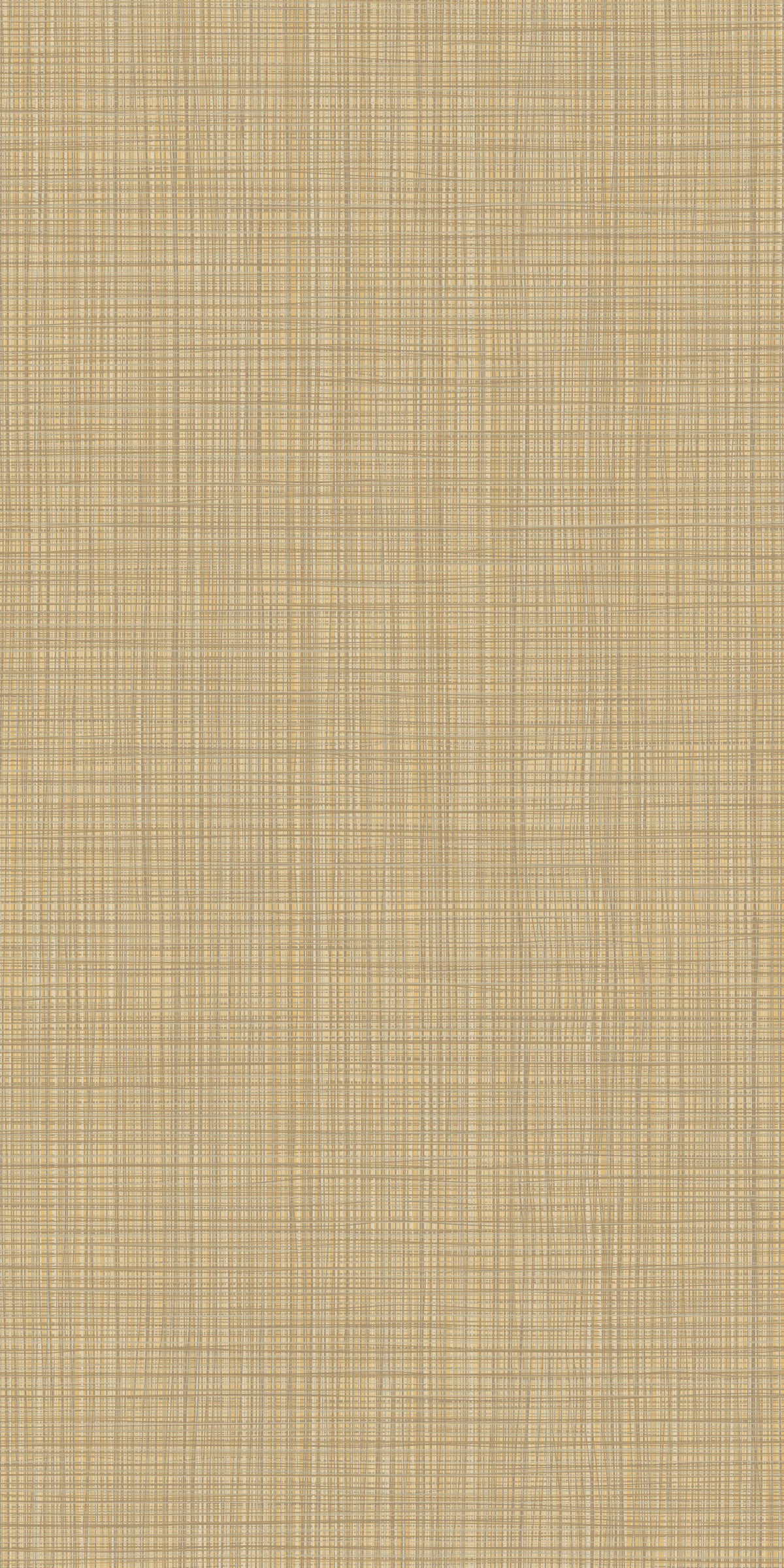

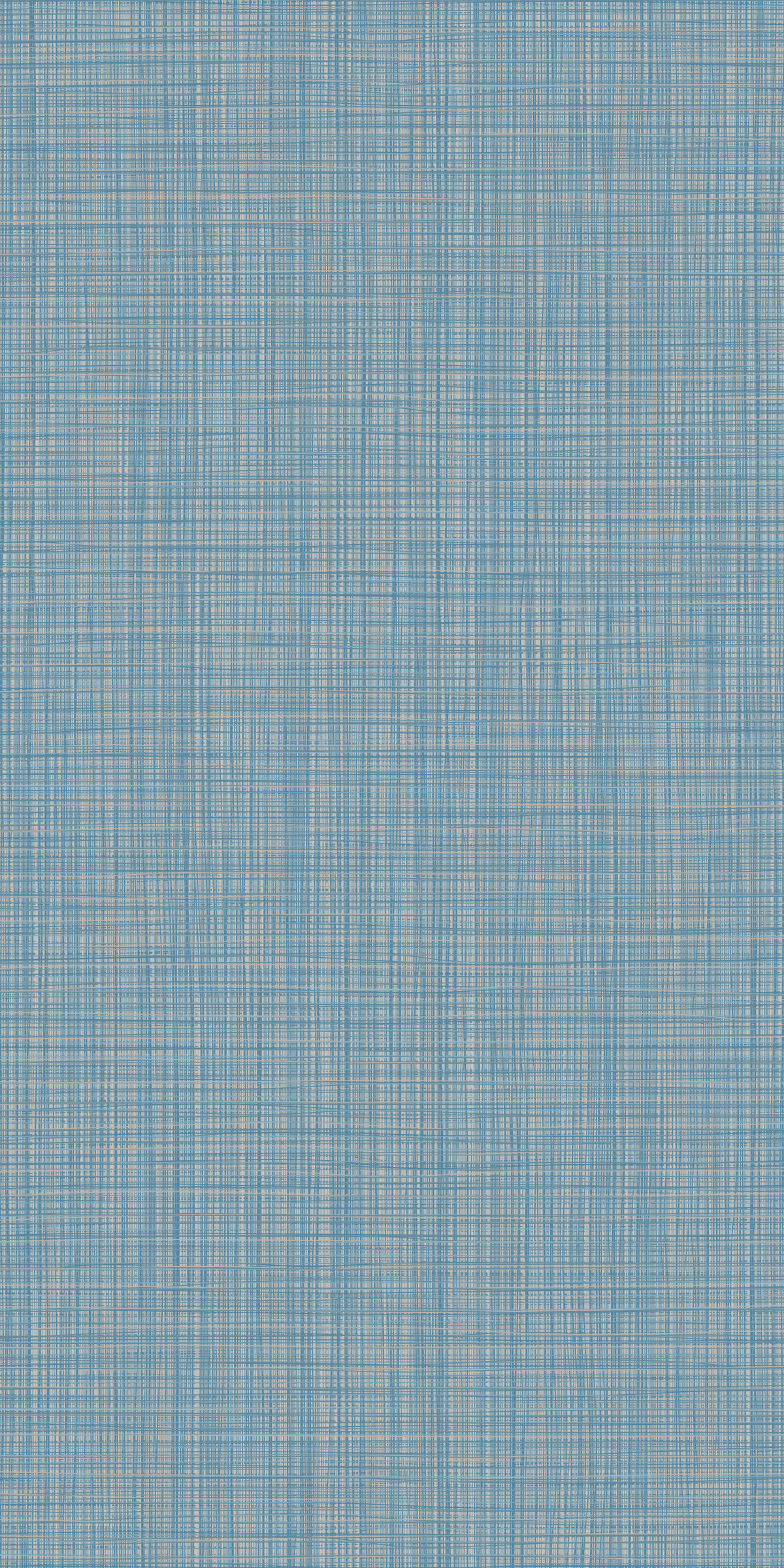

Midian
8 Colorways

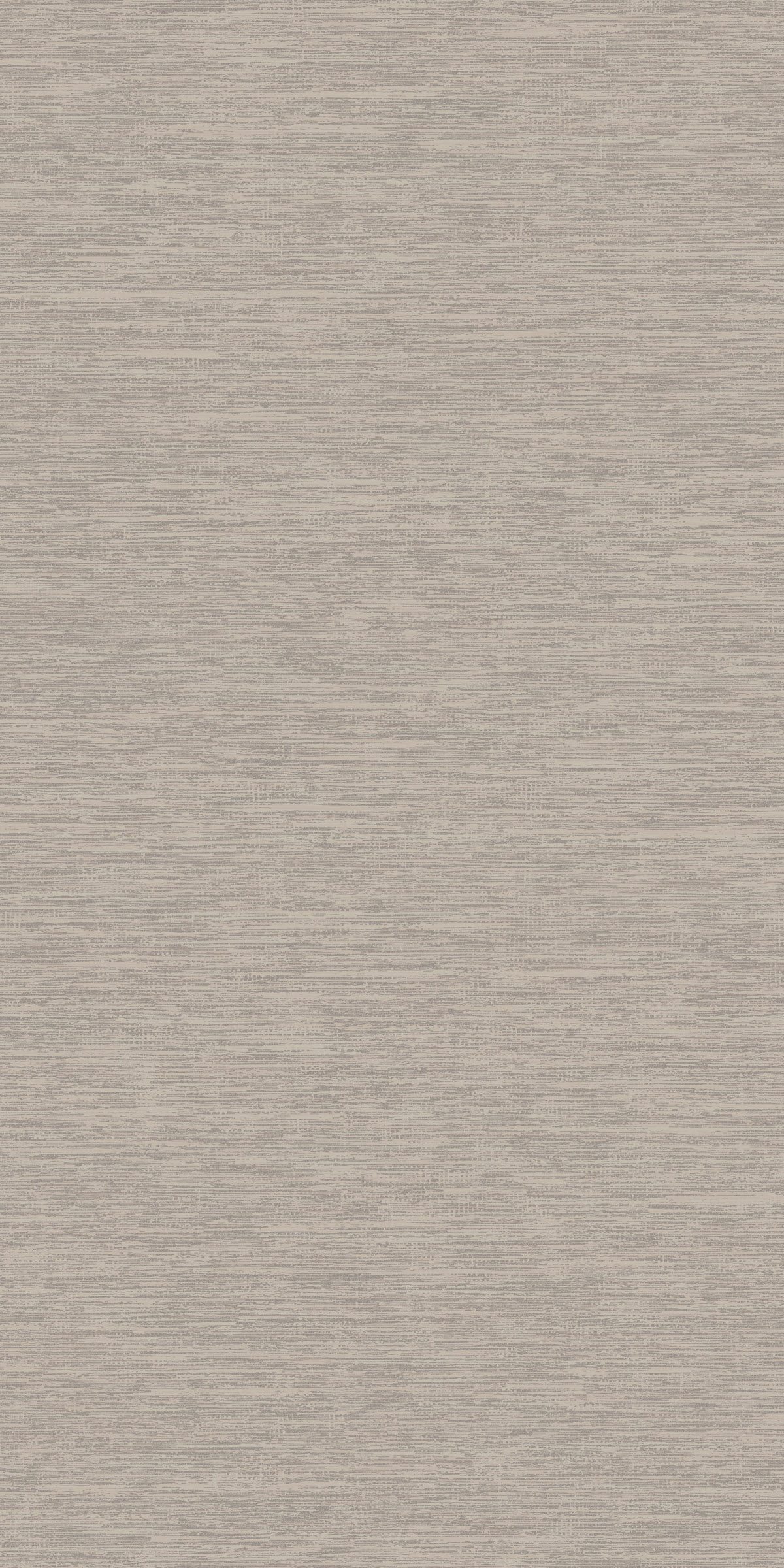

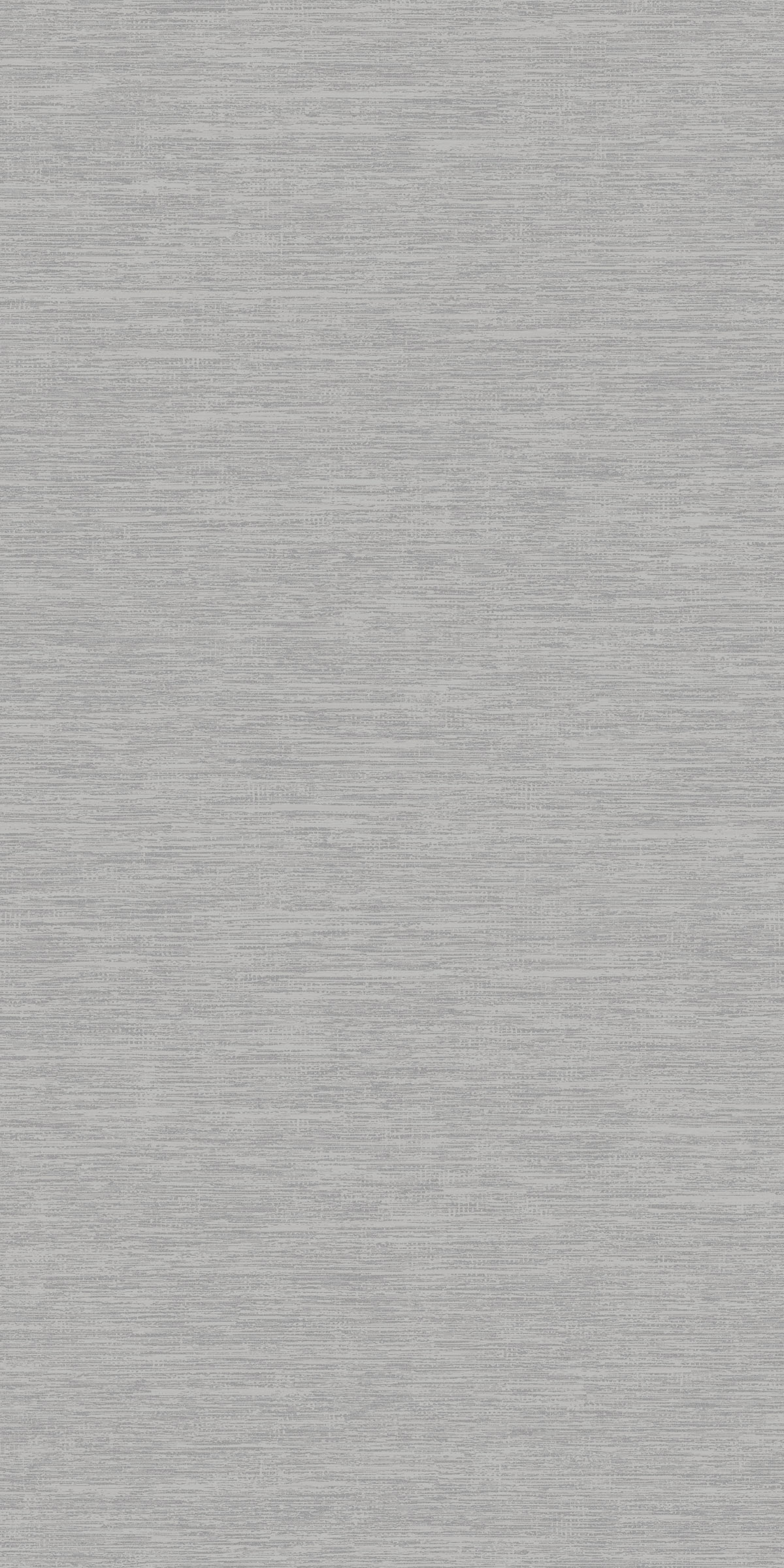

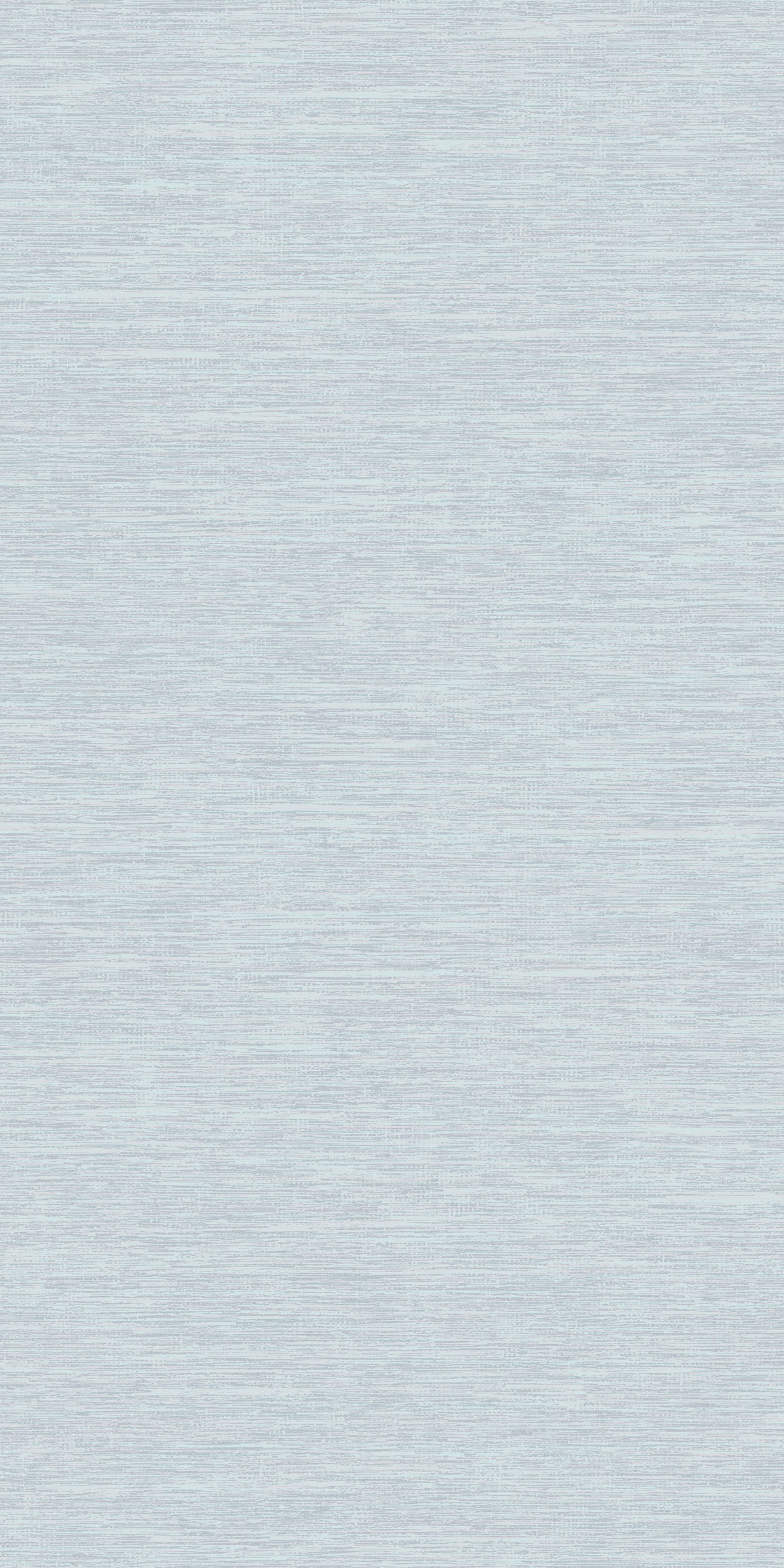

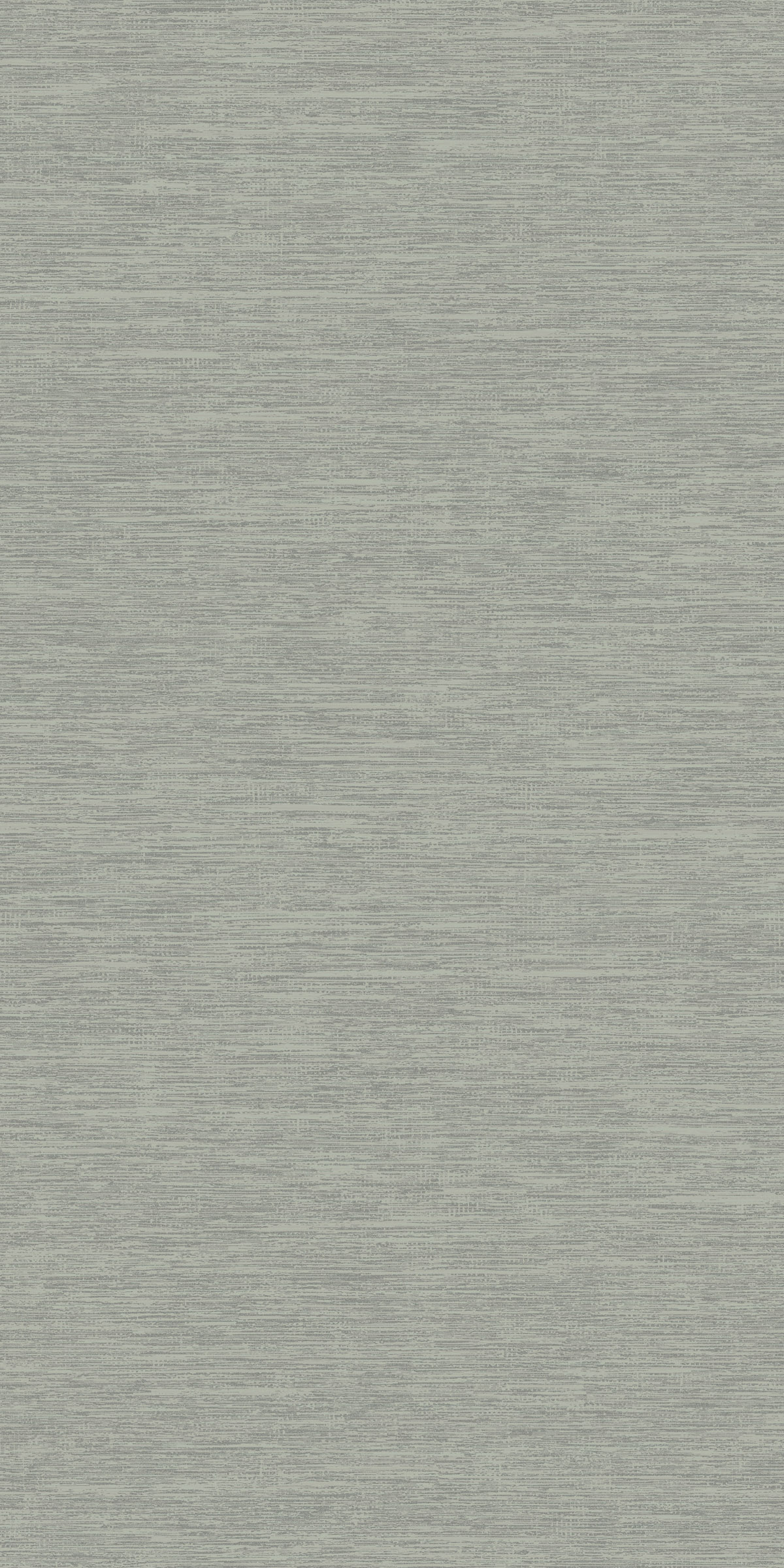

Kismet
6 Colorways

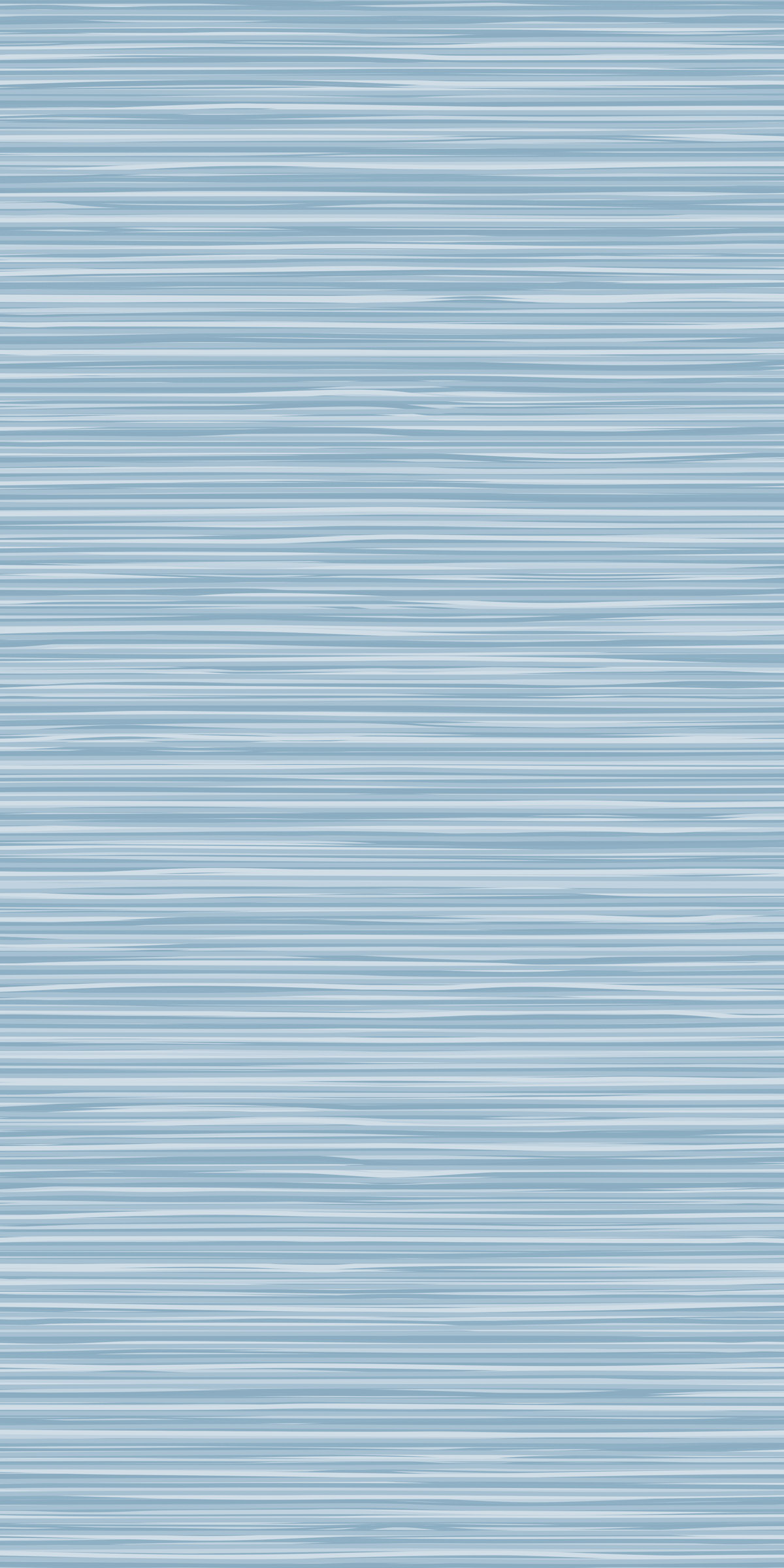

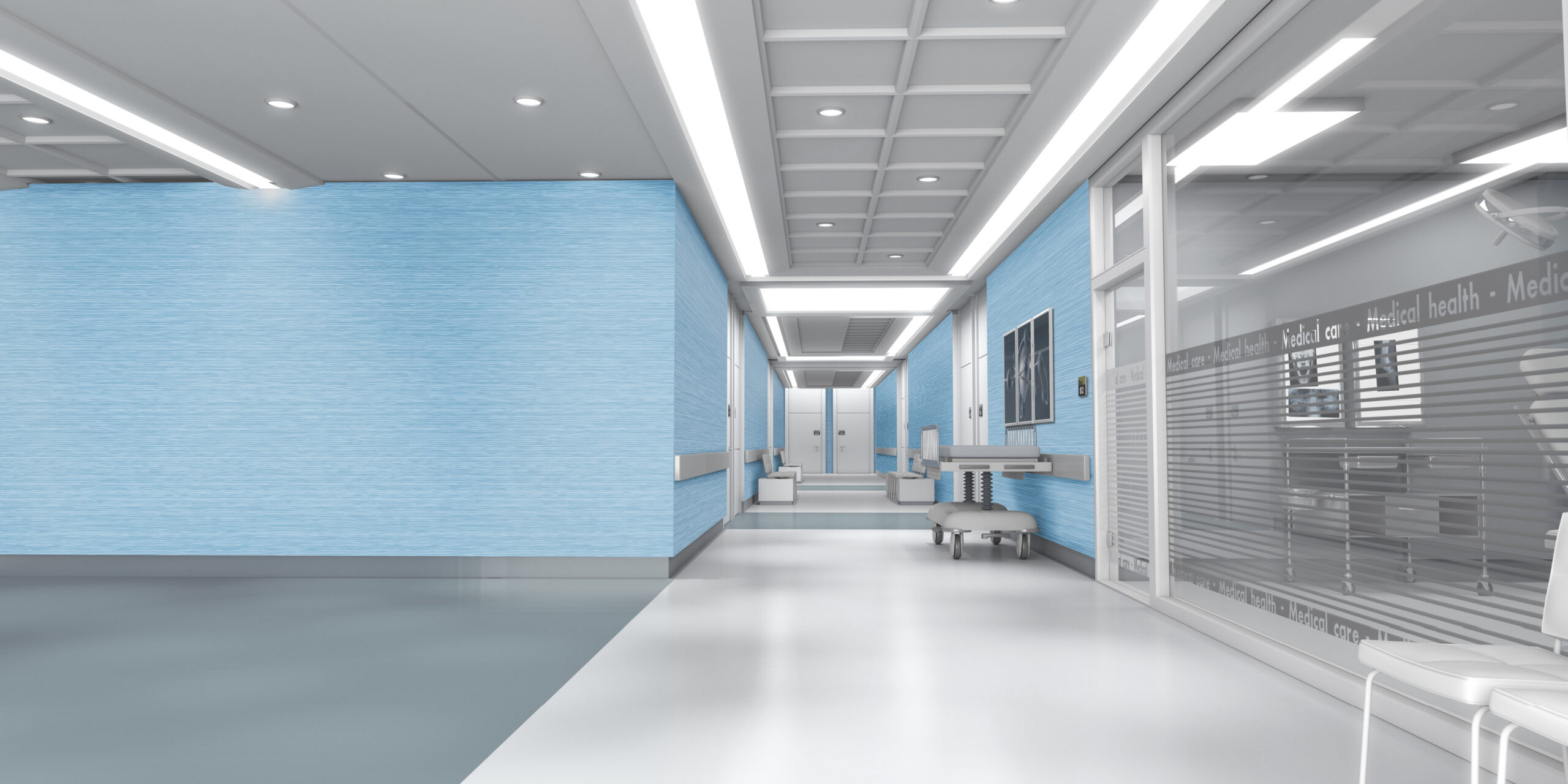

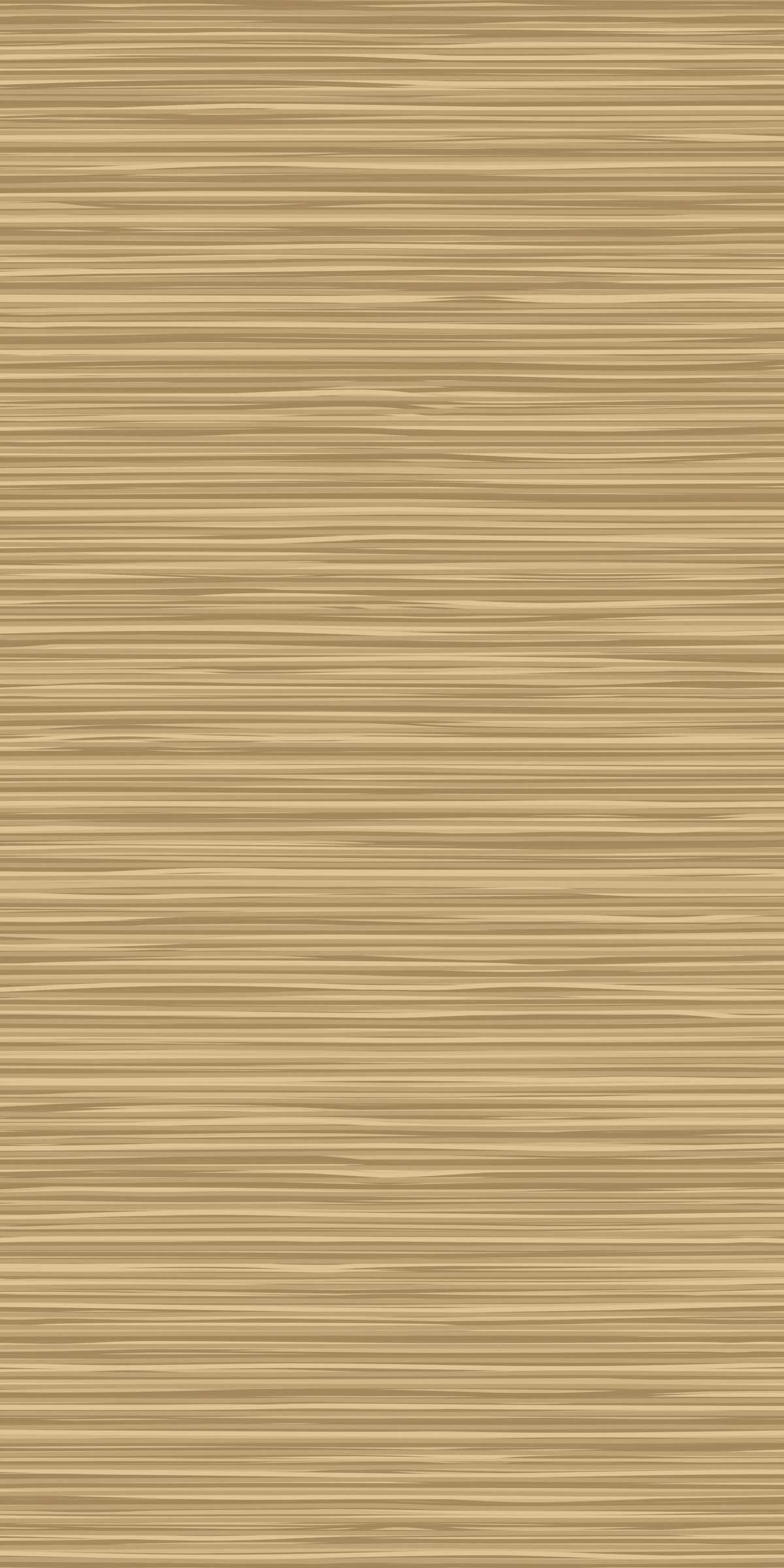

Wavy
8 Colorways
14 Colorways
24 Colorways

2. Submit natural materials to replicate

Whether you’re seeking the warmth of wood, the sophistication of marble, or the industrial appeal of concrete, our decorative FRP achieves stunning material representations that are lightweight, low cost, simple to apply and easy to maintain. Learn more.

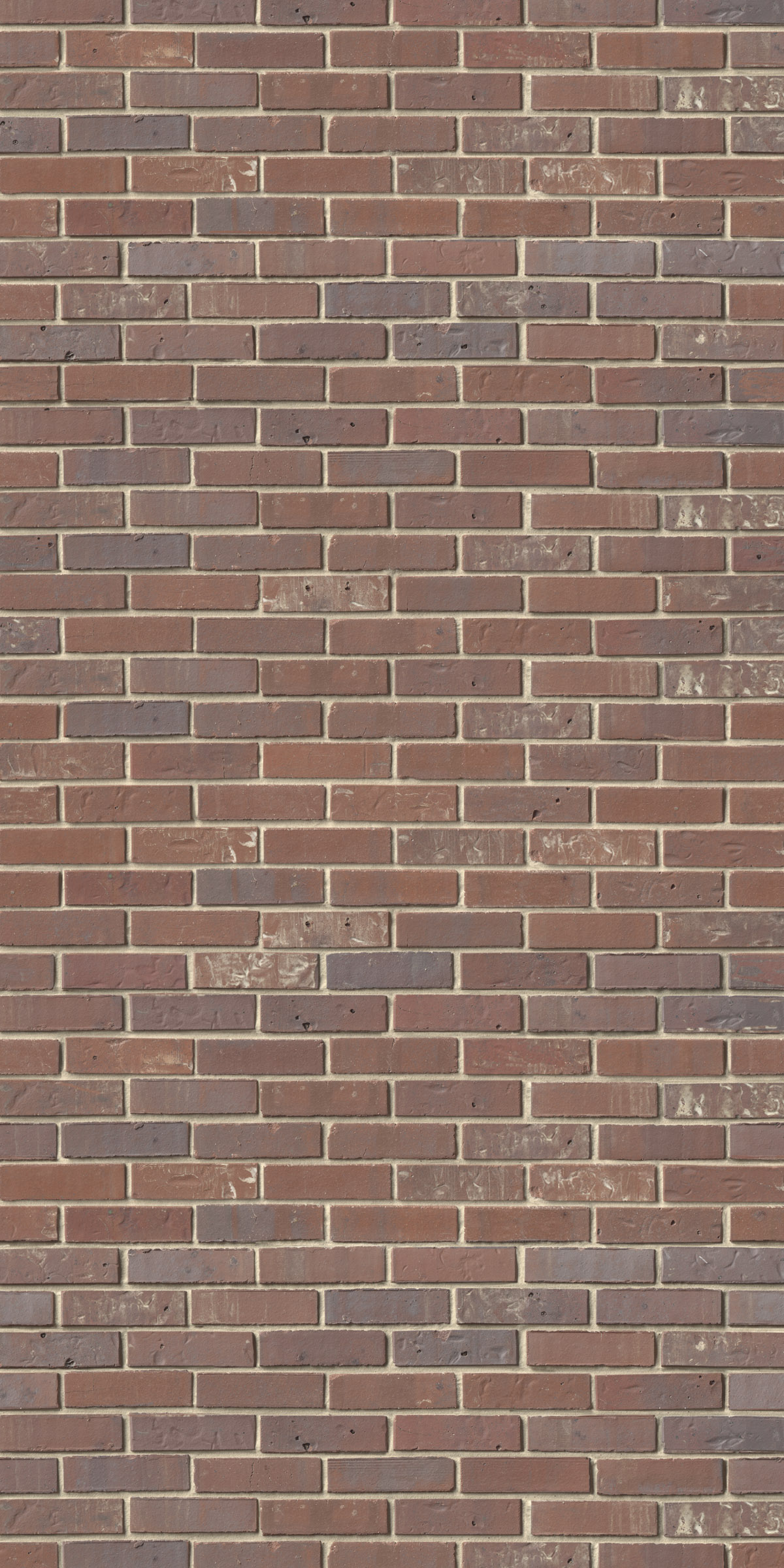

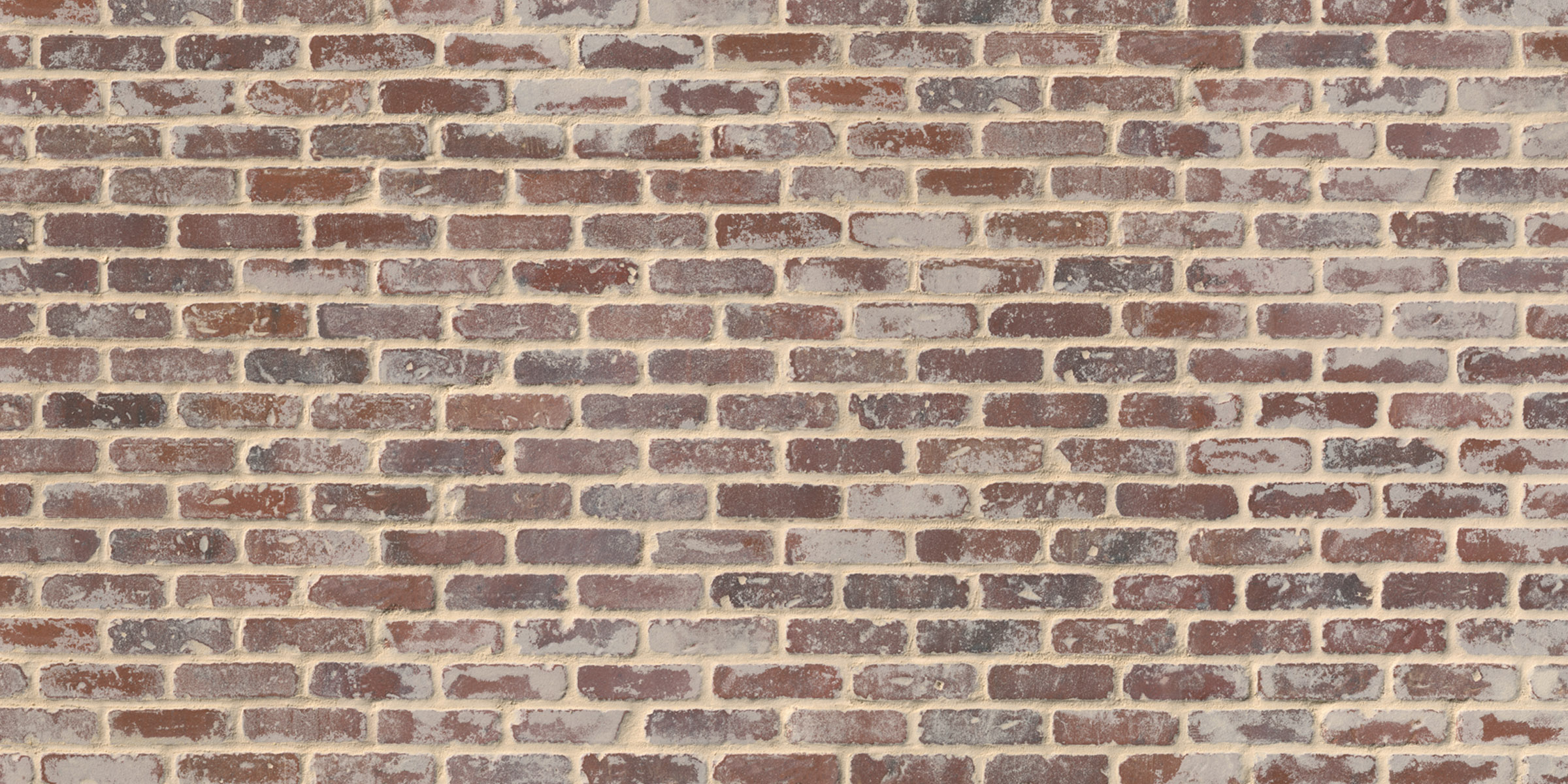

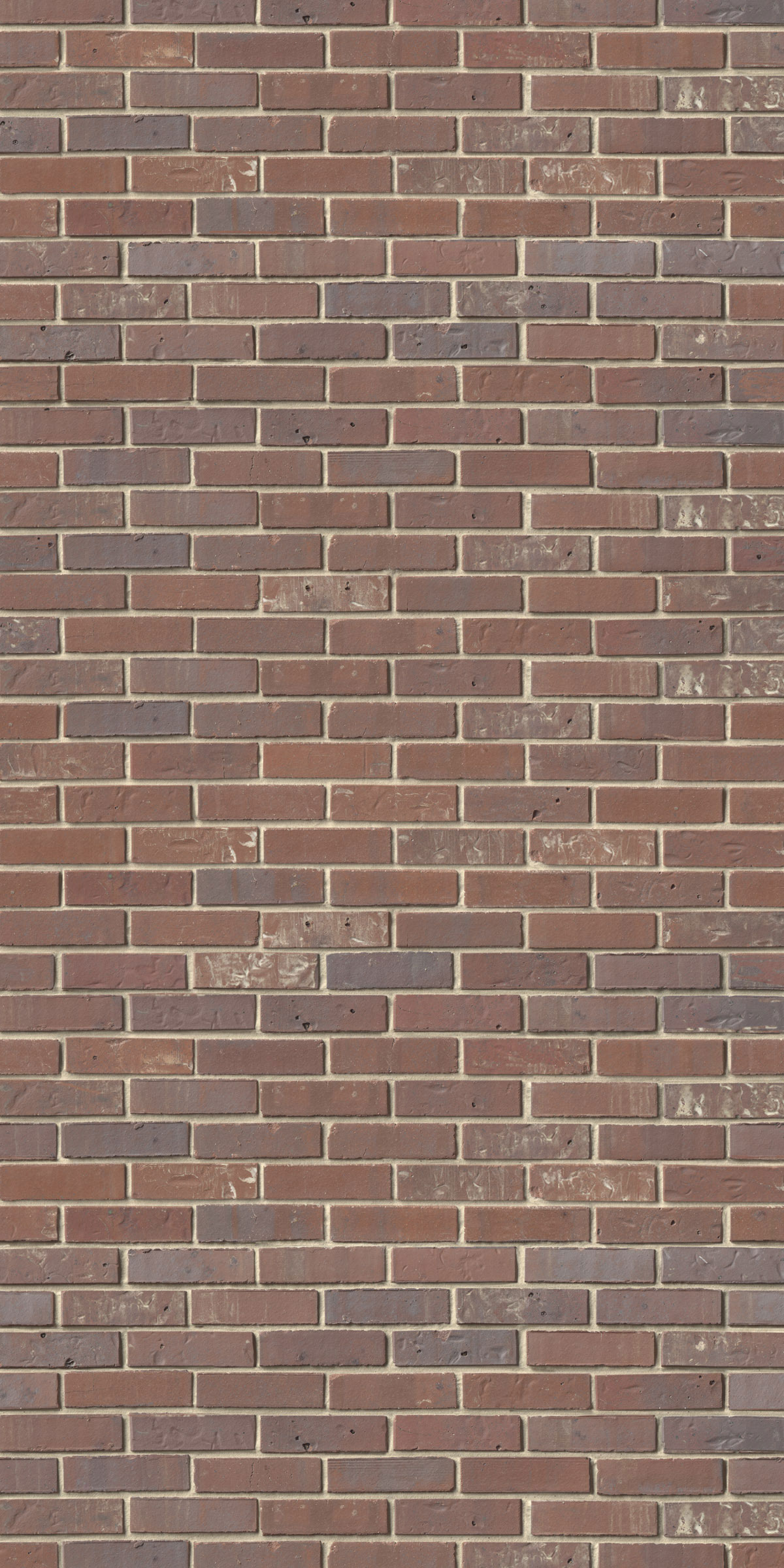

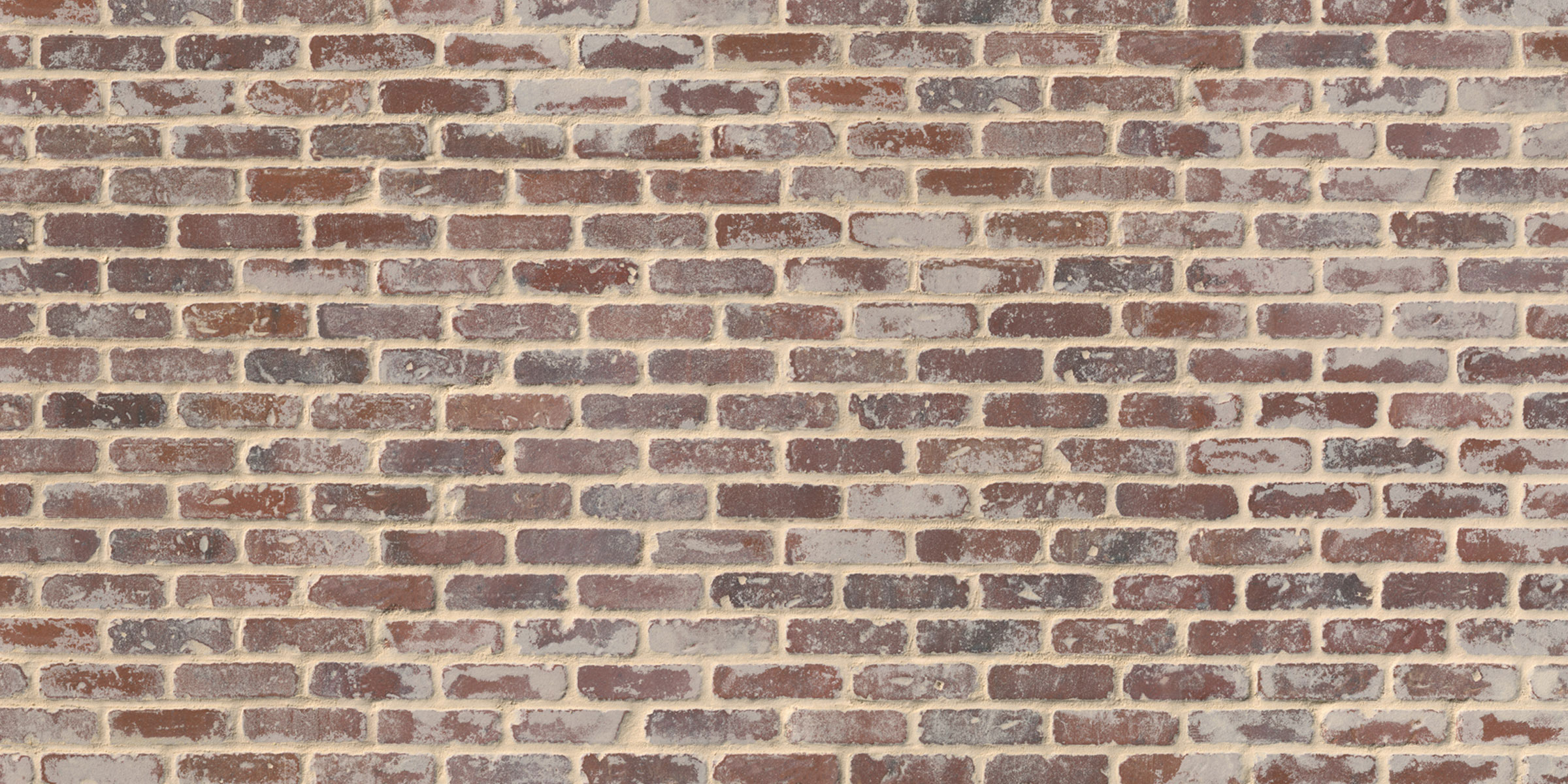

Brick
Stone
Wood Planks

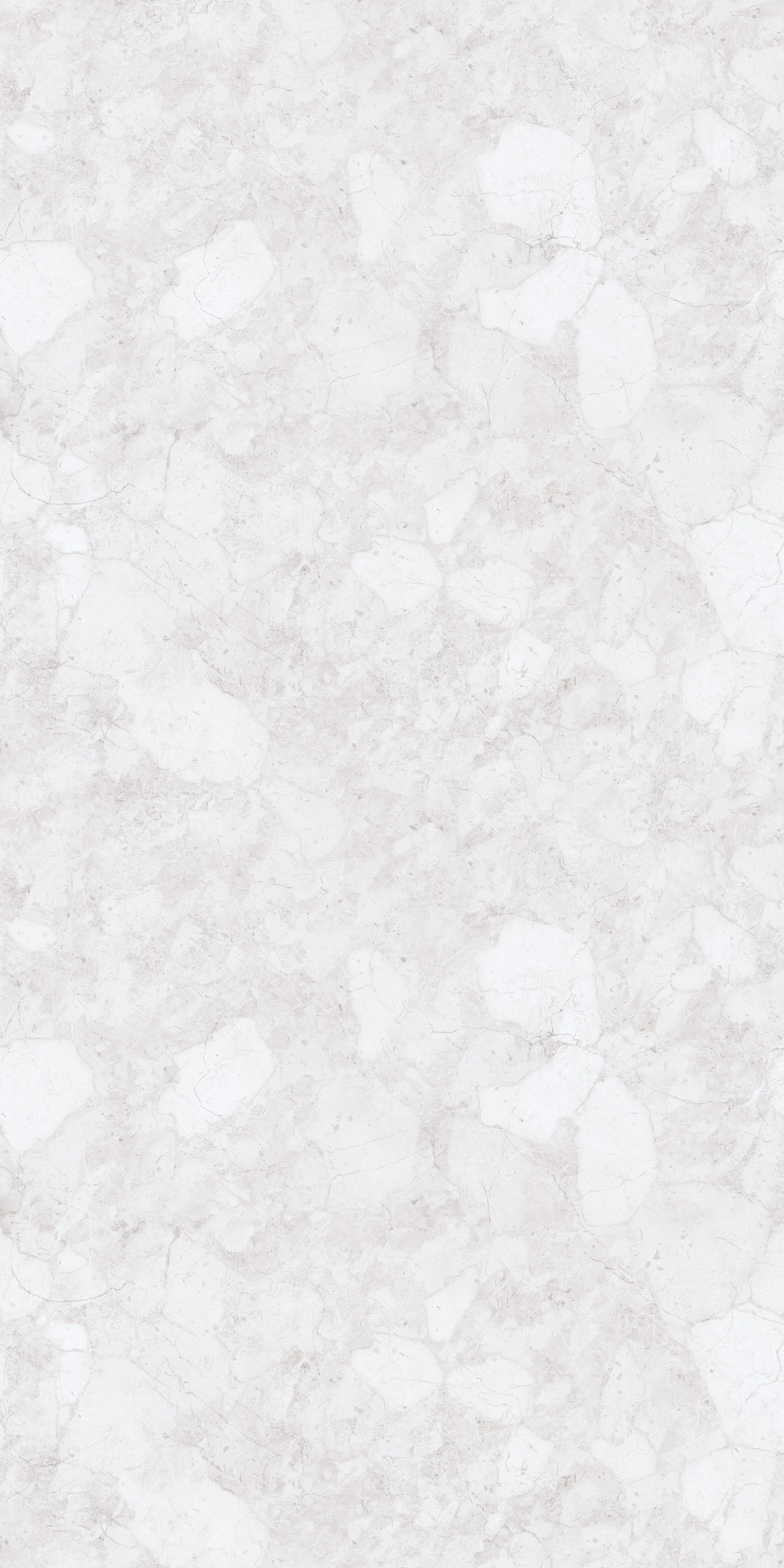

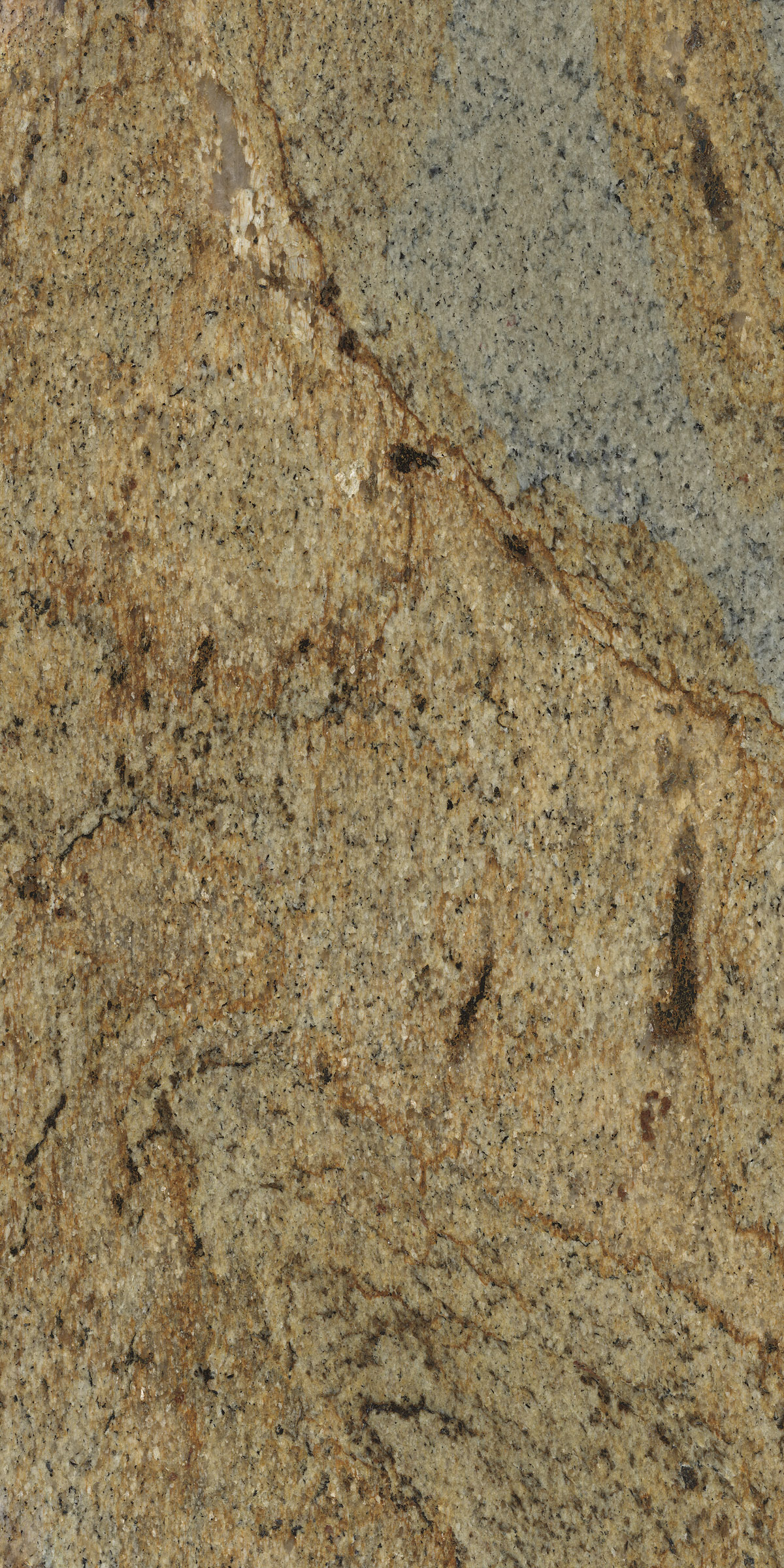

Marble

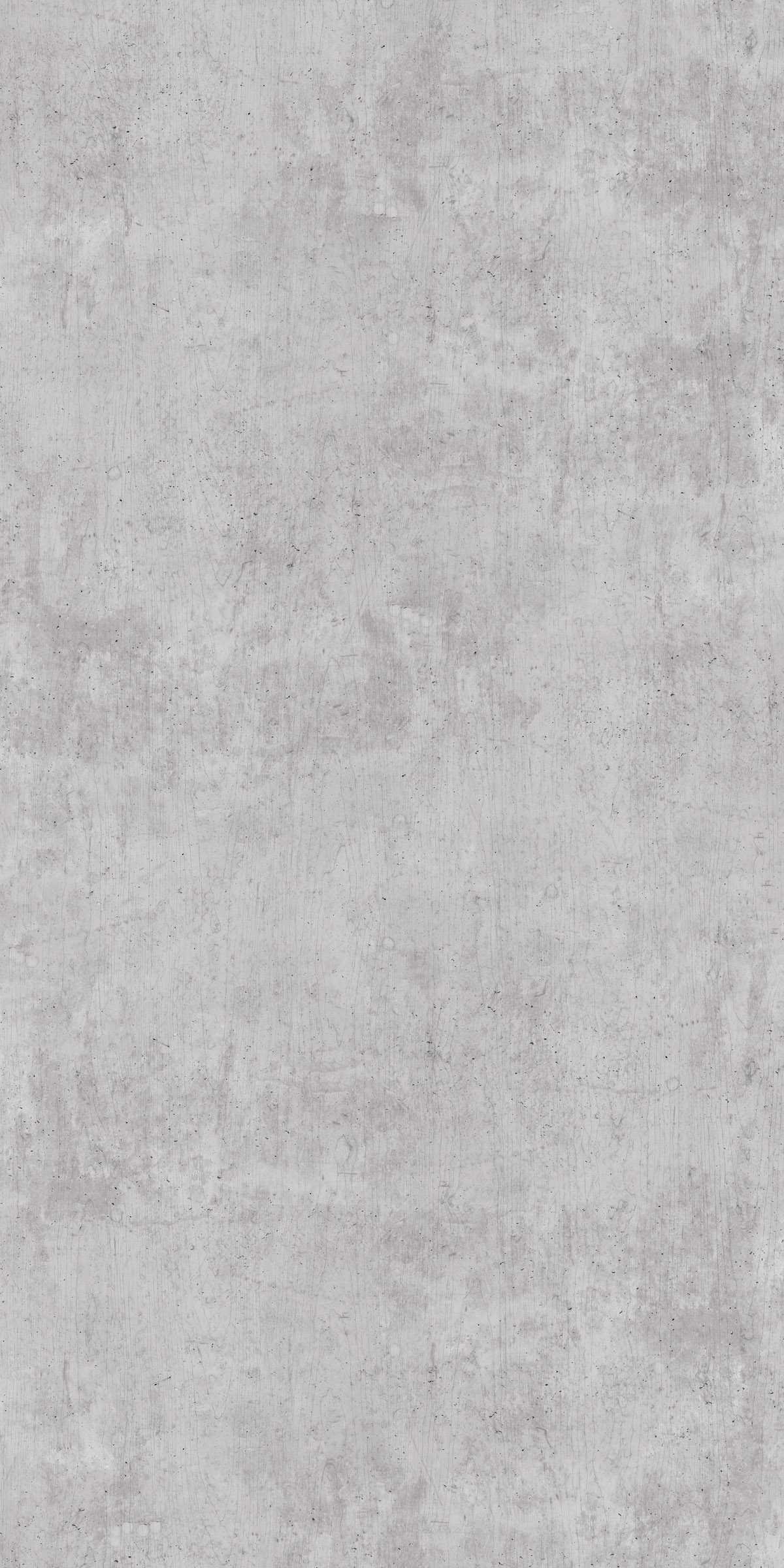

Concrete

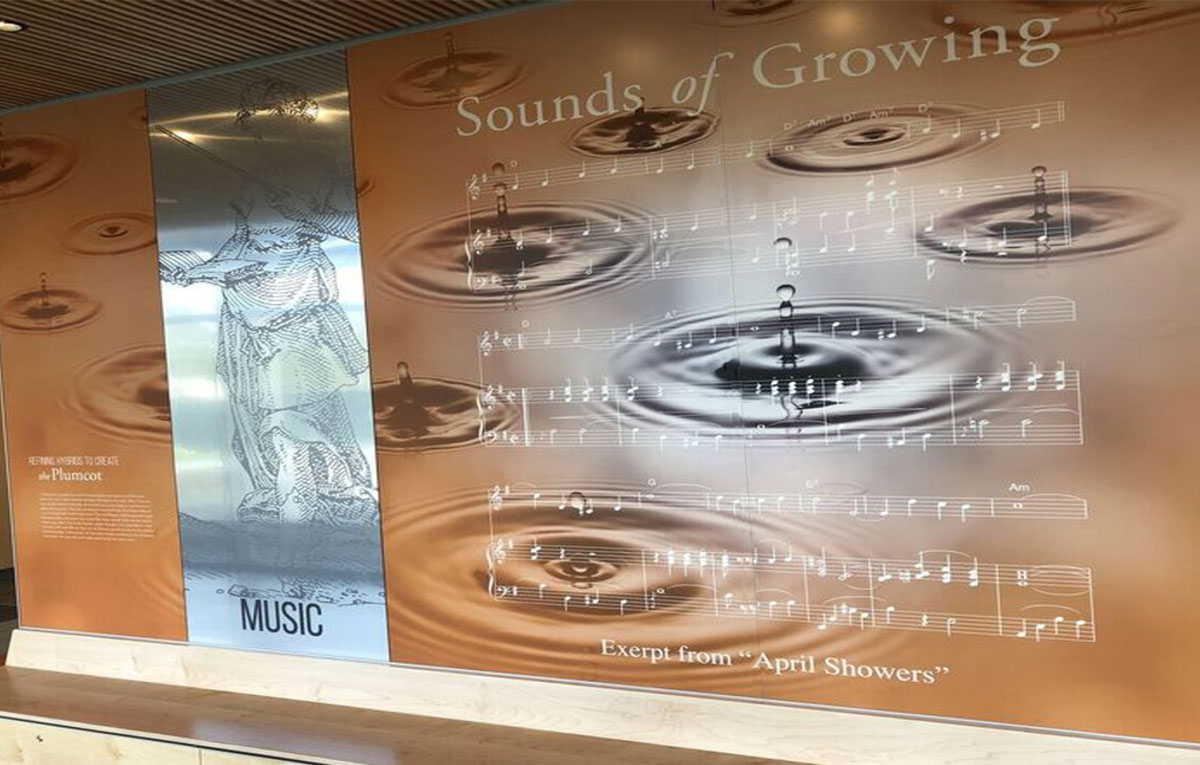

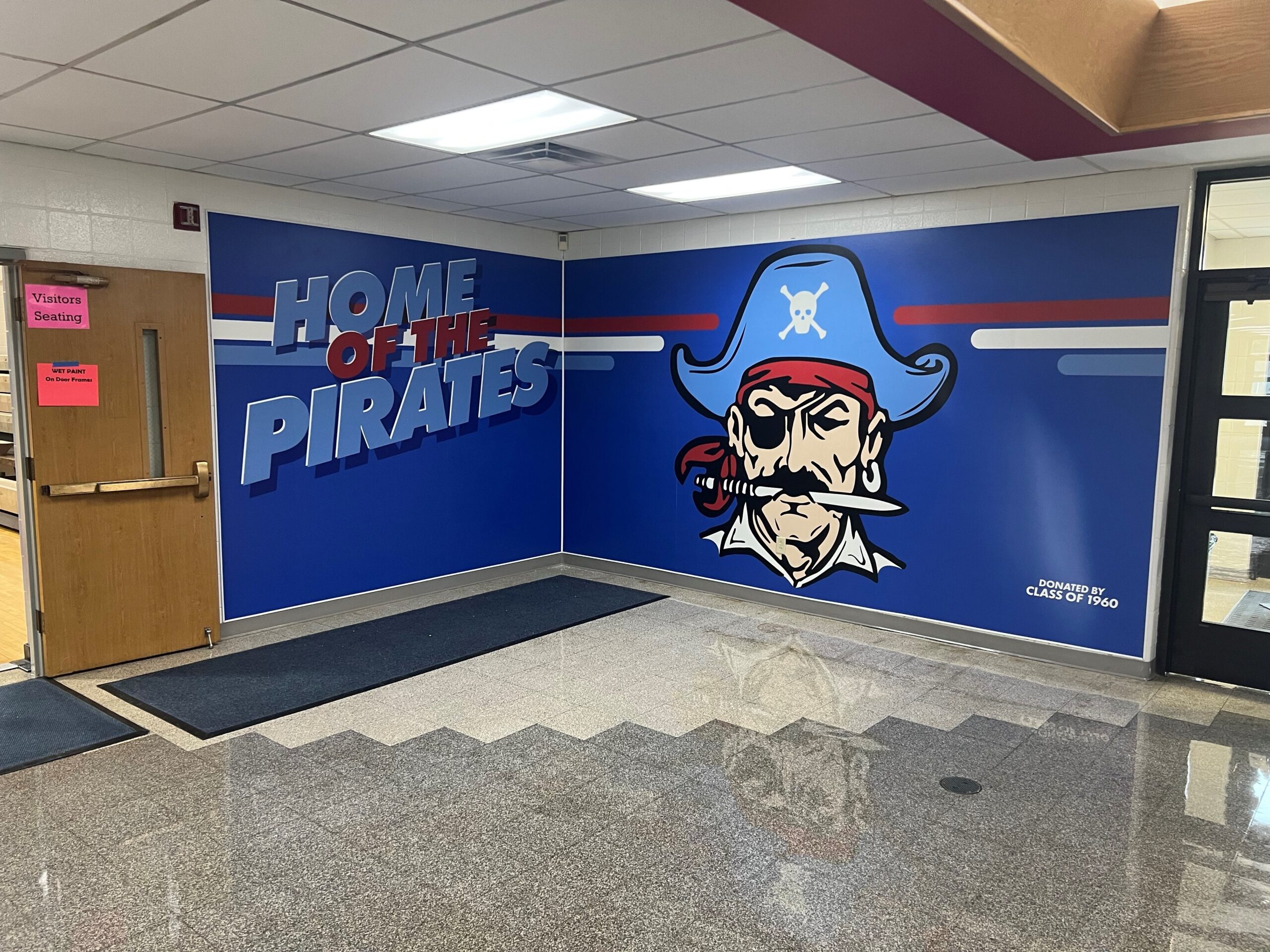

3. Upload an image to enhance your brand

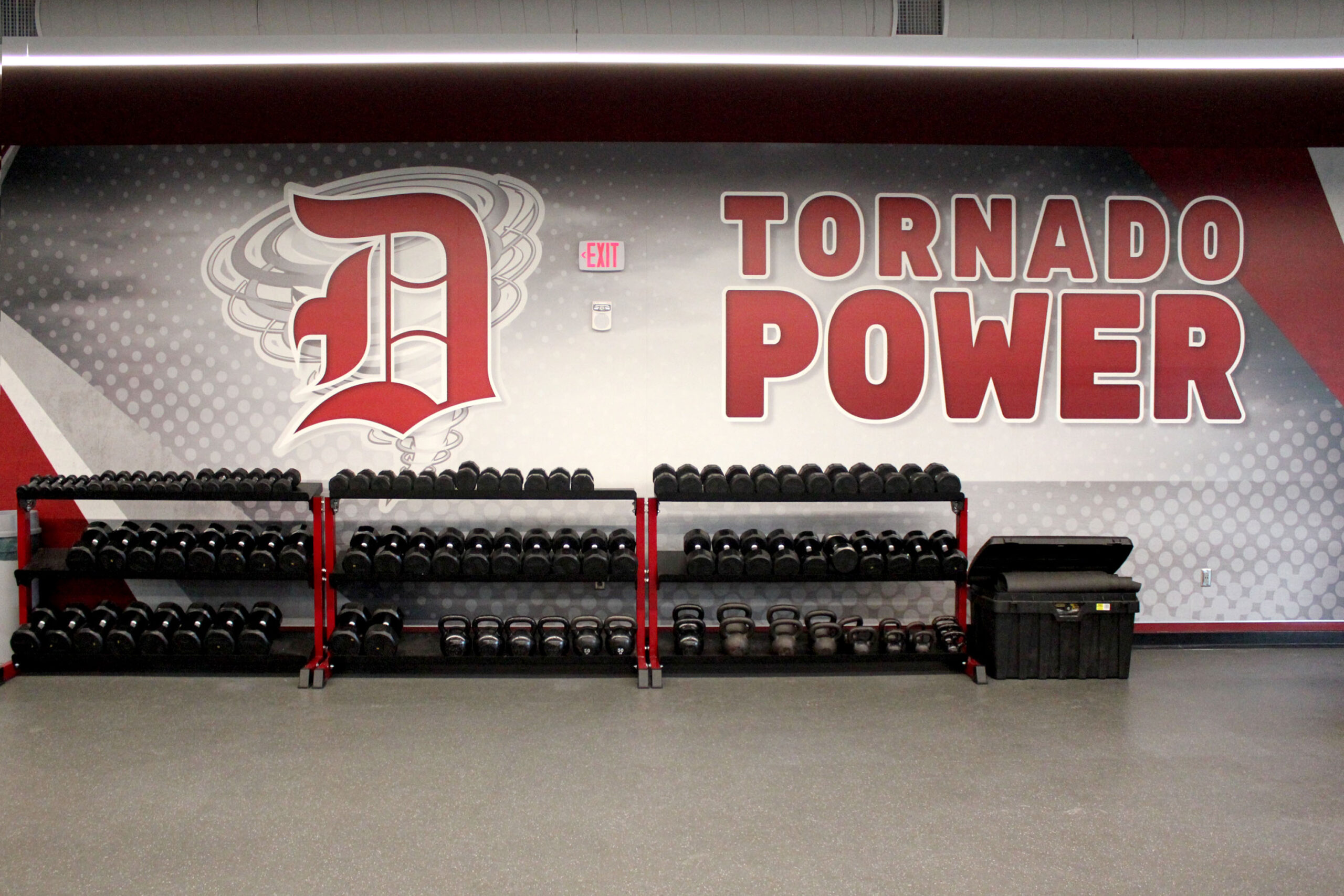

From healthcare environments to educational institutions, printed wall protection becomes an integral part of your visual identity. Create wayfinding systems, showcase branded graphics, or display school spirit —all while maintaining superior protection. Upload your design.

Panel Design: Marlite provides a panel lay-out document for approval.

Get a FREE Marlite Artizan Max FRP Sample

Maximum Defense

Wall protection for peace of mind

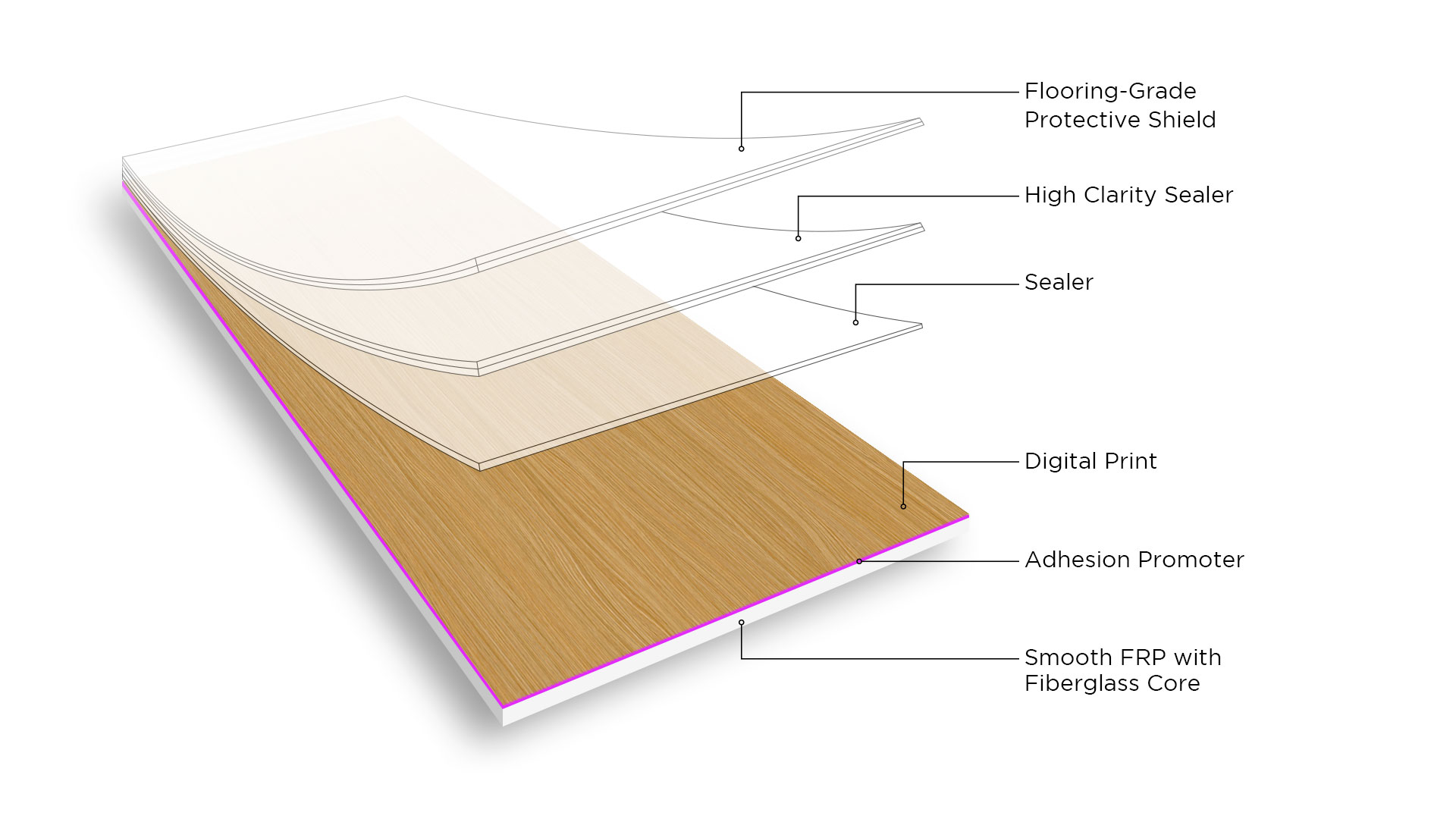

Artizan Max is engineered to handle real-world abuse due to its Fiberglass Core and Flooring-Grade Protective Shield.

Fiberglass Core

The greatest source of wall damage is blunt objects that cause impact. Artizan Max is manufactured with a fiberglass core, providing unmatched protection against the toughest hazards.

Flooring-Grade Protective Shield

Scratches and abrasions are eyesores requiring patchwork and repair. Marlite is the first to incorporate Flooring-grade Protection to walls using dual sealers and topcoat roll-applied to the surface of every Artizan Max Panel.

Hard Body Impact Test
Achieves Level 3
technical drawing of hard body impact testing machine

A weighted pendulum-like steel impactor is raised 12” before the swinging head strikes against the test panel. Artizan Max FRP achieves Level 3 – the highest level of impact resistance representing a minimum
150-ft lbs of force.

Surface Indentation
Achieves Level 3
technical drawing of a surface indentation machine

An 8-lb weight is raised to a height of 9” and dropped onto a hemispherical die imparting 72-in lbs of force. Artizan Max FRP achieves Level 3 – the highest level of resistance representing less than .050” indentation.

Surface Abrasion
Achieves Level 3
technical drawing of surface abrasion machine

25-lbs of weight is loaded on top of a wire brush and abraded in a forward and backward motion for 50 cycles. Artizan Max FRP achieves Level 3 – the highest level of resistance representing less than .010” abrasion.

Taber Abrasion
1,372 Cycles
technical drawing of a Taber abrader machine

A 500-gram load is placed on top of an abrader wheel and spins, taking haze and weight loss measurements. Artizan Max FRP records 1,372 cycles of abrasion. This test was developed to compare High Pressure Laminate (HPL) and other materials used on surfaces such as countertops and tables.

Trim Options

Complete your decorative wall panels with quality trim

Finish the look of your custom-printed FRP panels with our selection of trim options and corner guards.

Harmonizing Aluminum Trim
Anodized Aluminum Trim
White
PVC Trim
Corner Guards
Installation

Quick and easy installation

Like all Marlite FRP, Artizan Max installs quickly and easily over most existing surfaces—keeping your project on schedule and your costs in check. Available in 4′ x 8′ x 3/32″ and 4′ x 10′ x 3/32″ panels.

  • Cover virtually any existing surface
  • No special tools or skills required
  • Easy to fabricate for med-gas components and other cutouts
  • Standard drywall contractor installation

Cover virtually any existing surface

Space under construction with drywall up

Old/New Drywall

old and damaged looking white square tiles.

Old/Damaged Tile

Hallway with rigid vinyl

Rigid Vinyl Plastic

concrete block wall

CMU Block

ArtMax_TableSawCut3

Trim Max FRP panels easily using a table saw.

spreading glue on back of FRP panel

Spread Marlite adhesive on the back of the decorative panels.

Roll the wall panels after installation.

Images of 2 types of adhesive buckets

Use only Marlite-approved adhesives.

For a complete guide to installing Artizan™ Max FRP Panels click here.

Inspirations

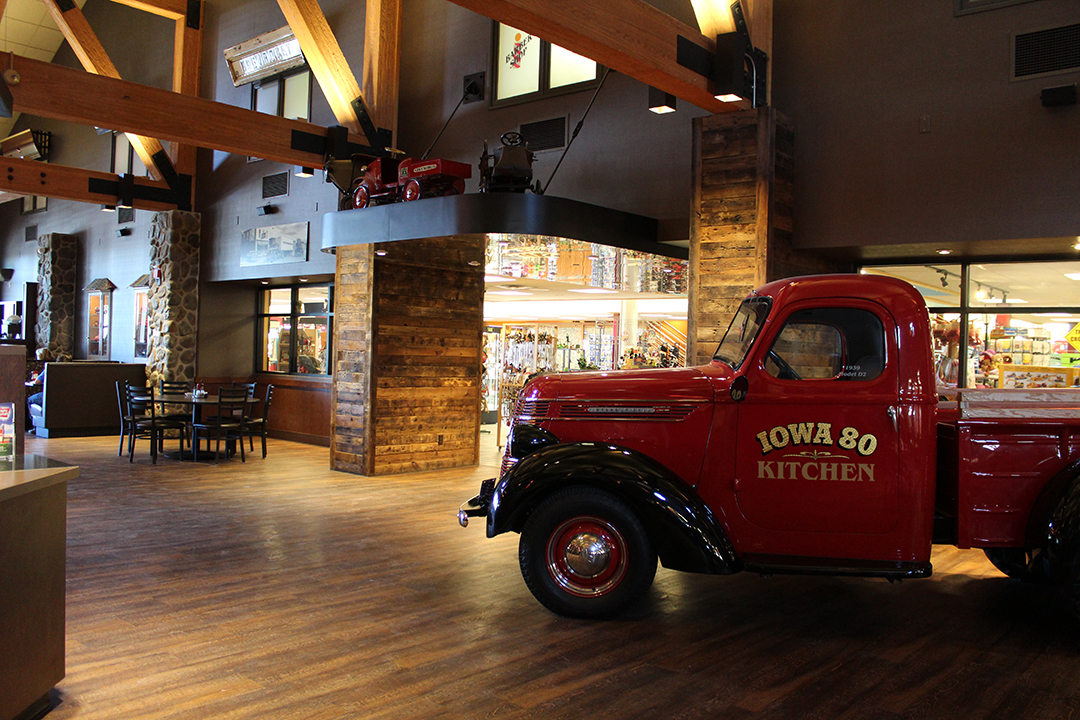

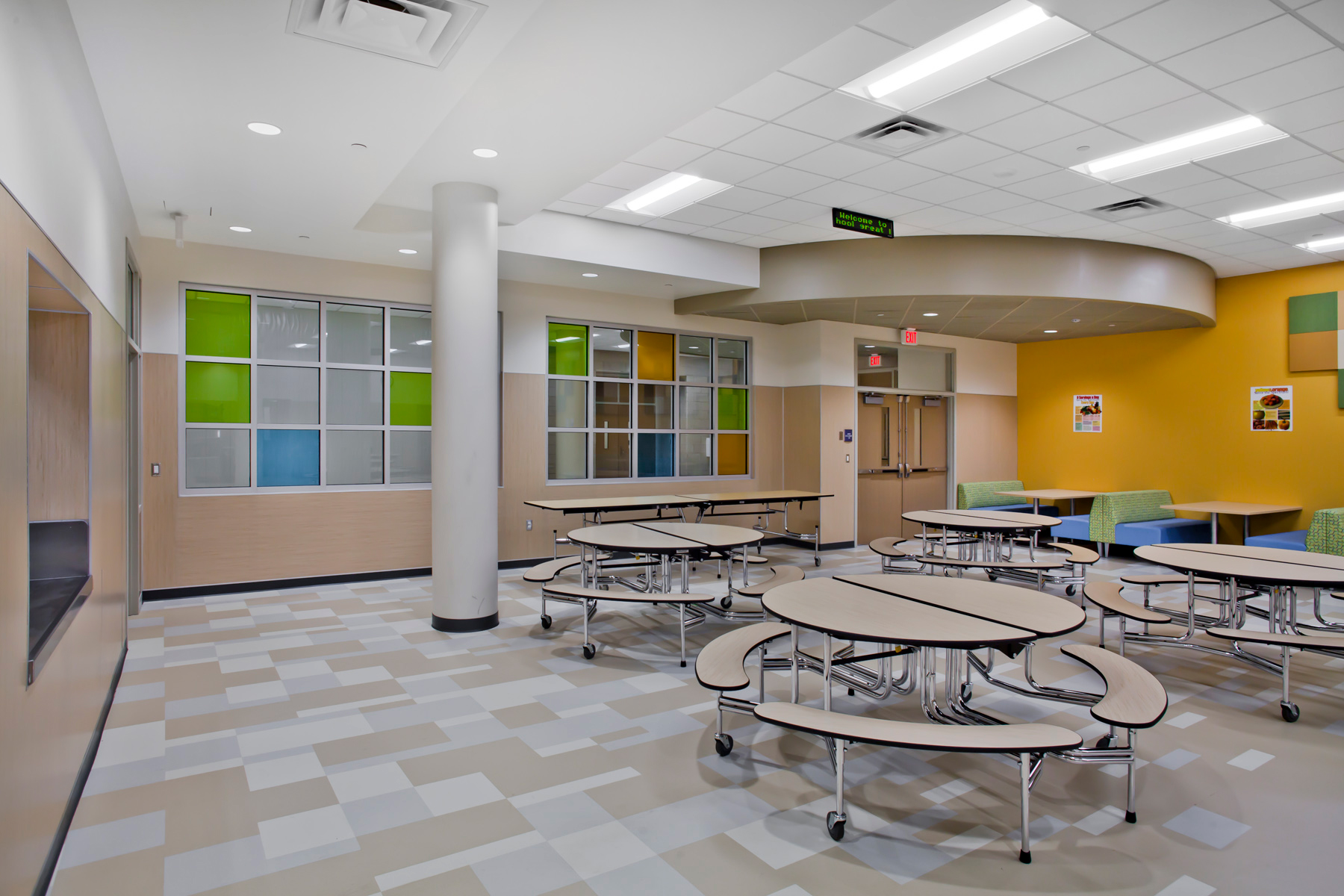

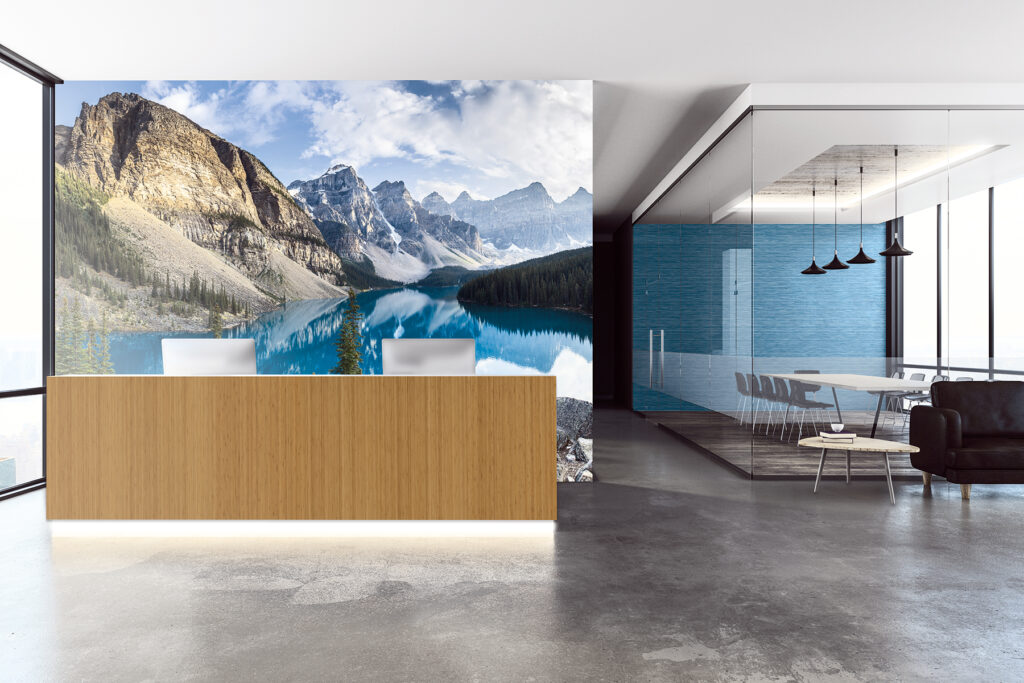

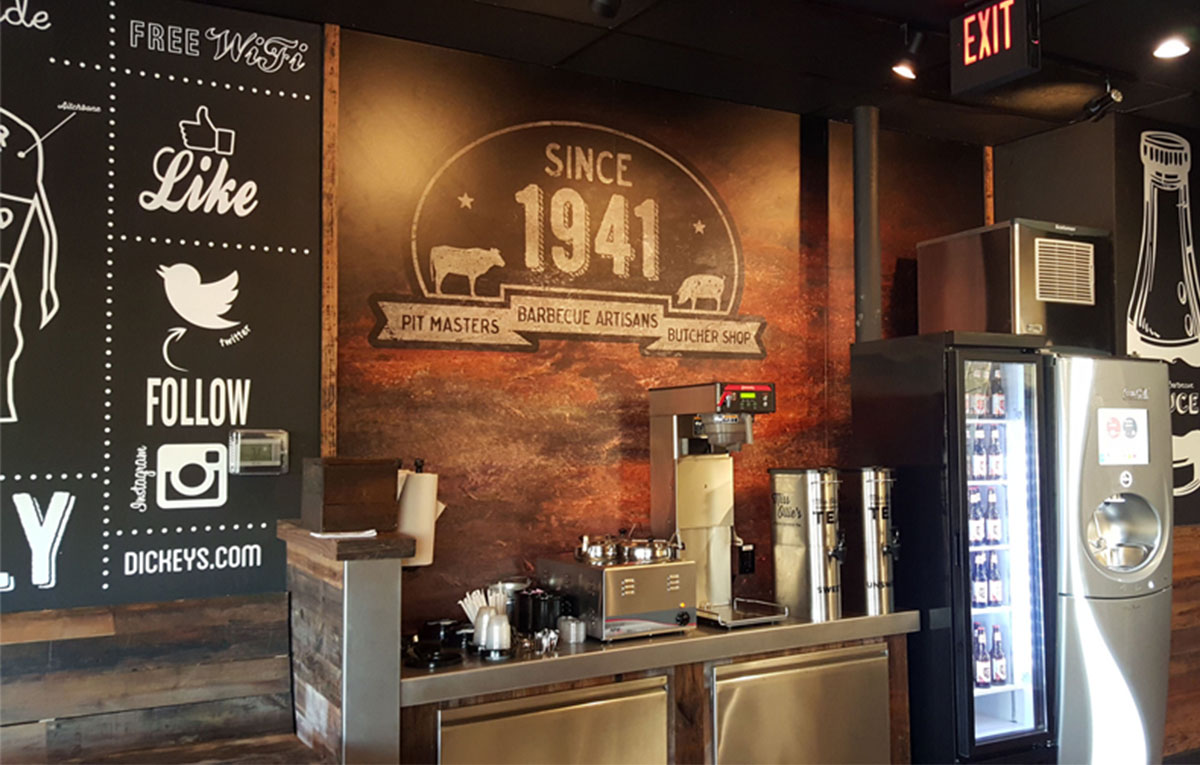

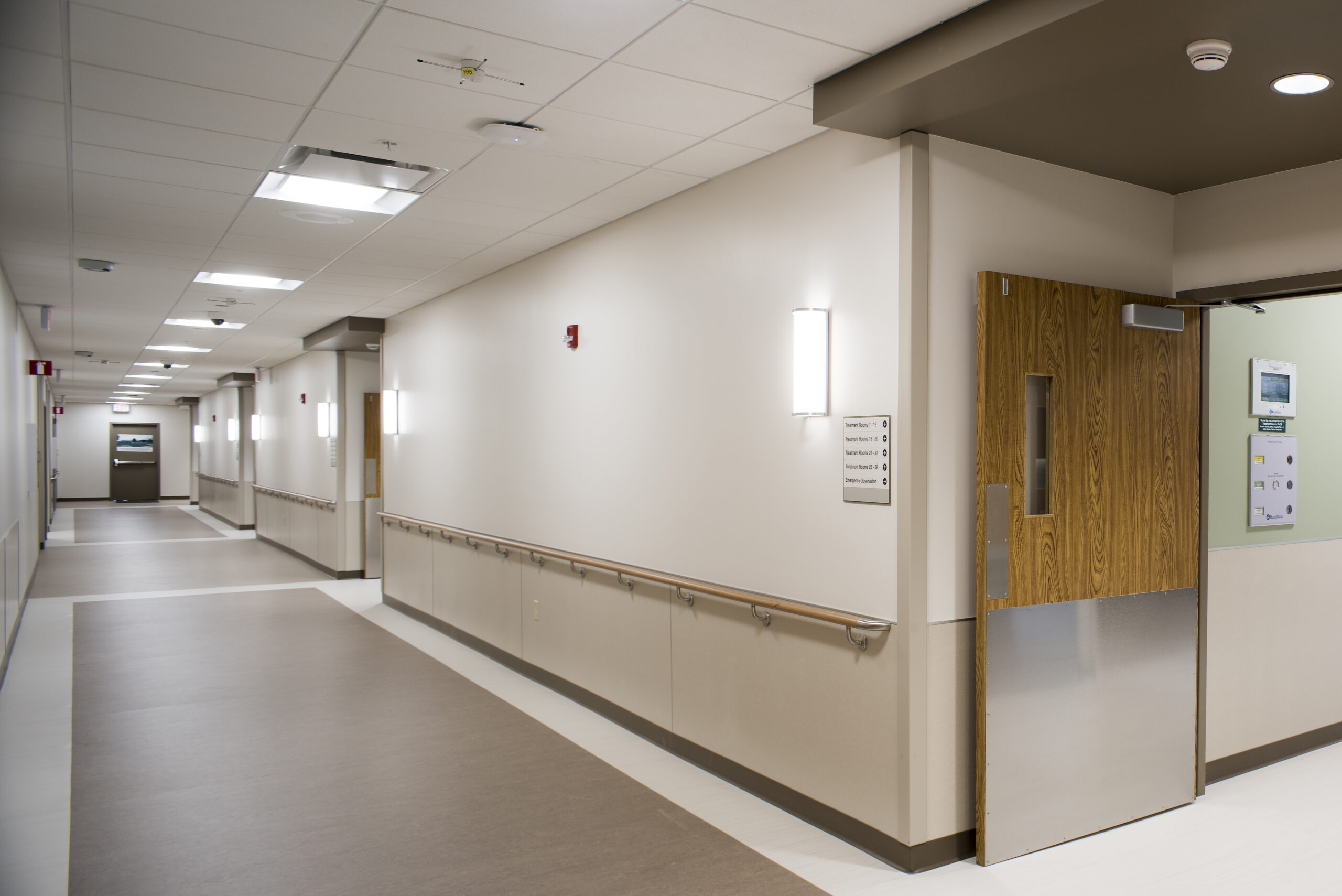

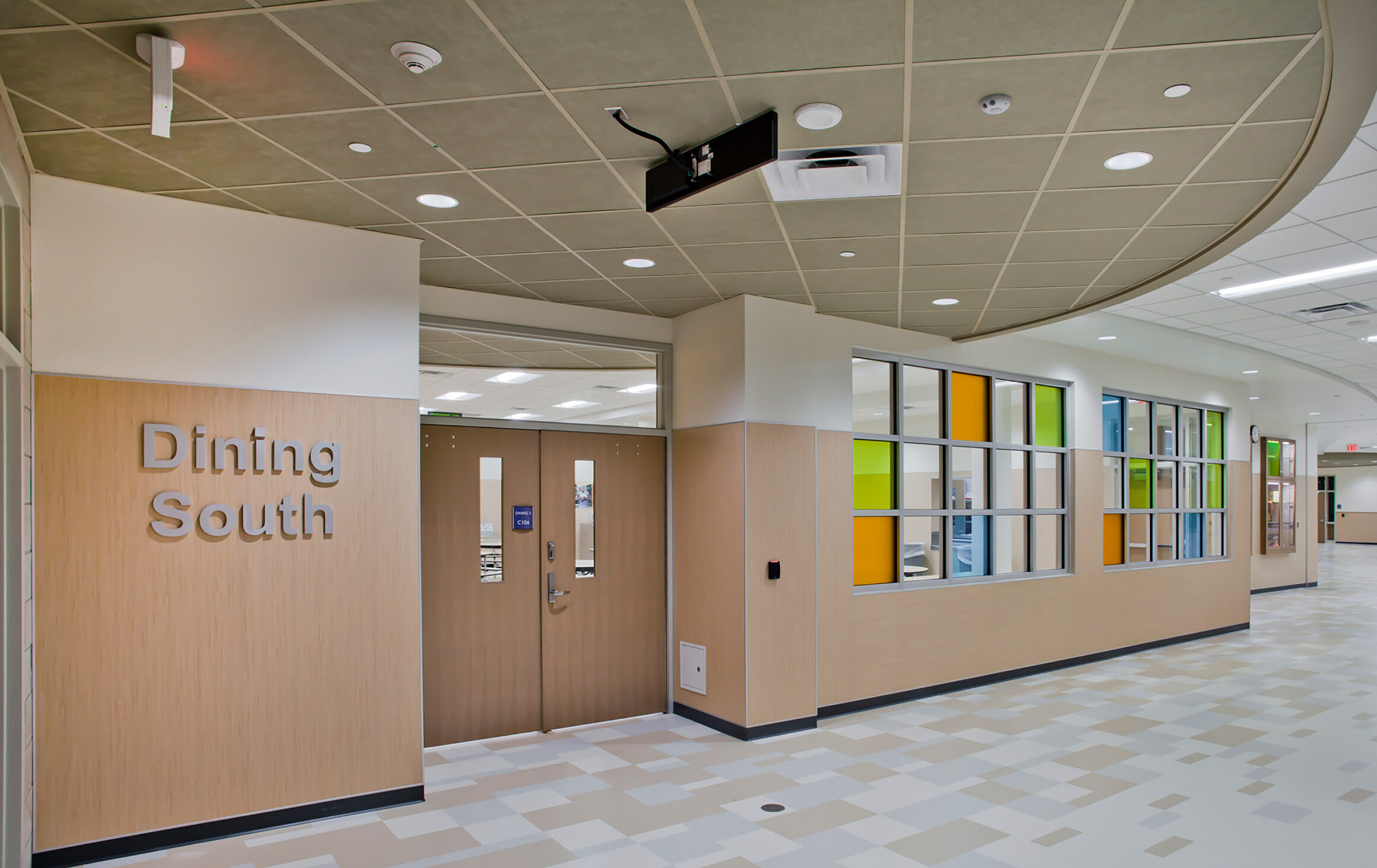

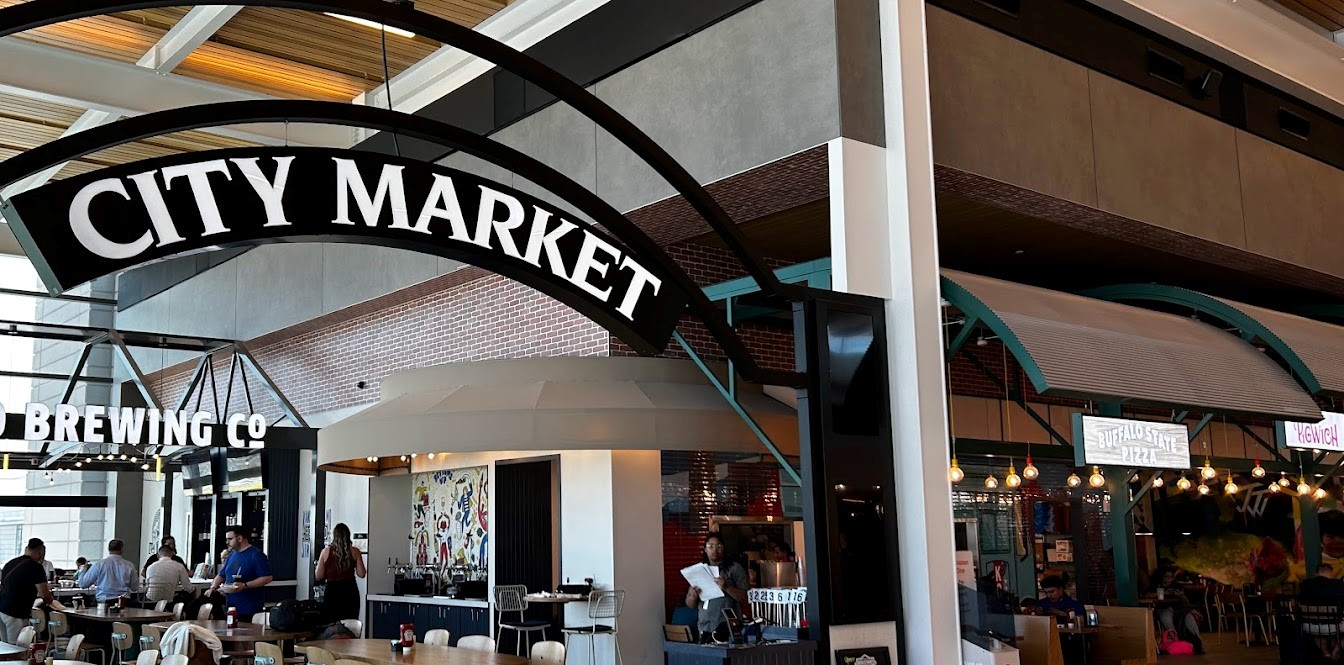

Ideal Artizan Max applications

Quick Specs

  • Substrate: Fiberglass Reinforced Plastic (FRP)
  • Panel dimensions: 4’ x 8’ x 3/32” & 4′ x 10′ x 3/32″ (nominal)
  • Fire Rating: Class I/A and Class III/C
  • Meets USDA/FSIS Requirements
  • UL GreenGuard Certified
  • PVC-Free Panels
  • Easily wipes clean with standard cleaning solutions.
  • Maximum design meets maximum defense in high-traffic, high-use spaces
Literature

Artizan Max FRP Catalog


Marlite FRP Full Catalog

Submittal Info

CSI Division 9


CSI Division 10.16


CSI Division 10.17


CSI Division 12

Installation & Technical Data

Artizan Max FRP Installation Instructions


Technical Data and Cleaning Care

Artizan™ Max Iron Threads Collections

Artizan™ Max Cozy Collection

Artizan™ Max Coffered Collection

Artizan™ Max Ash Collection

Artizan™ Max Midian Collection

Artizan™ Max Kismet Collection

Artizan™ Max Wavy Collection

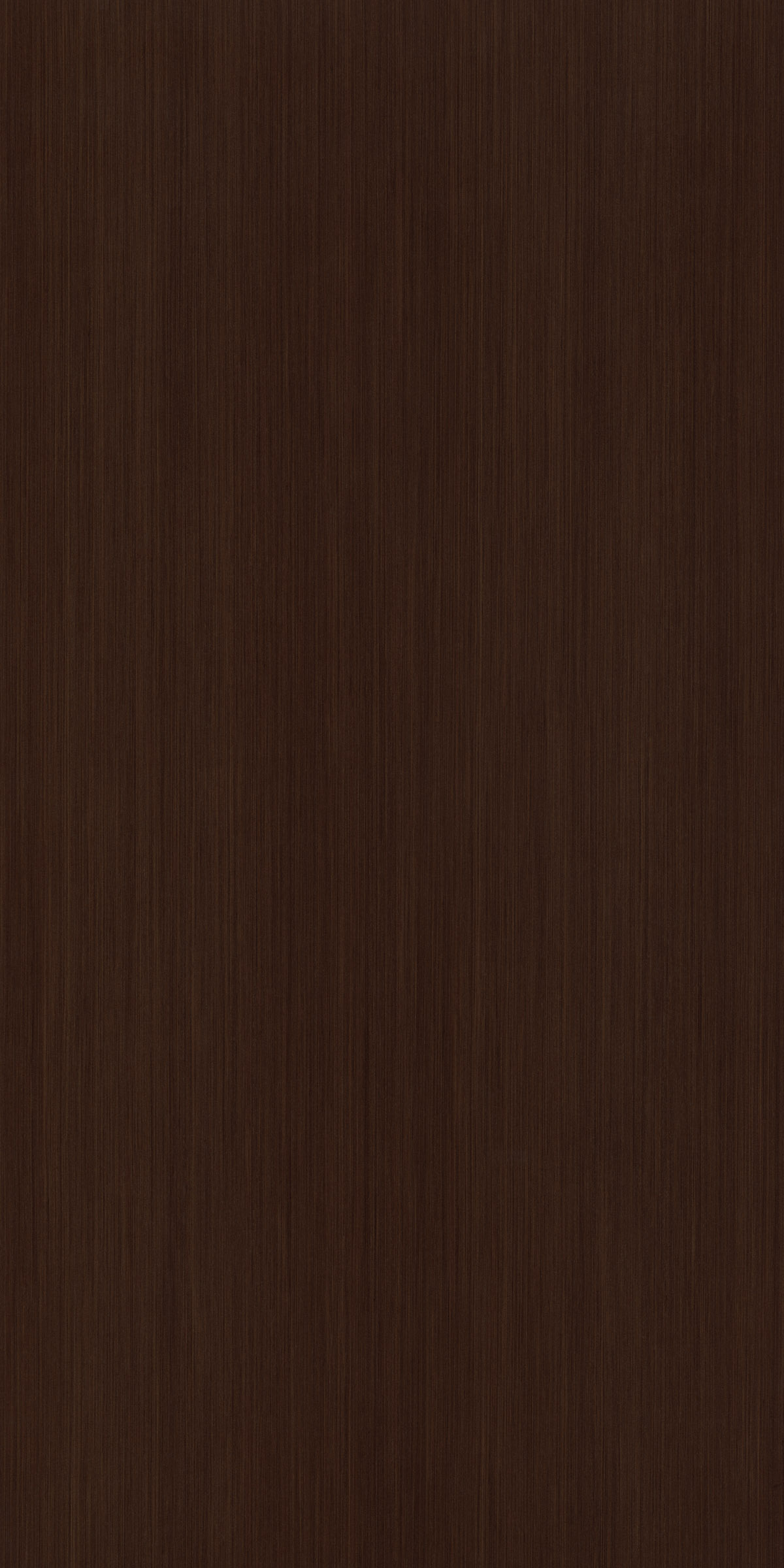

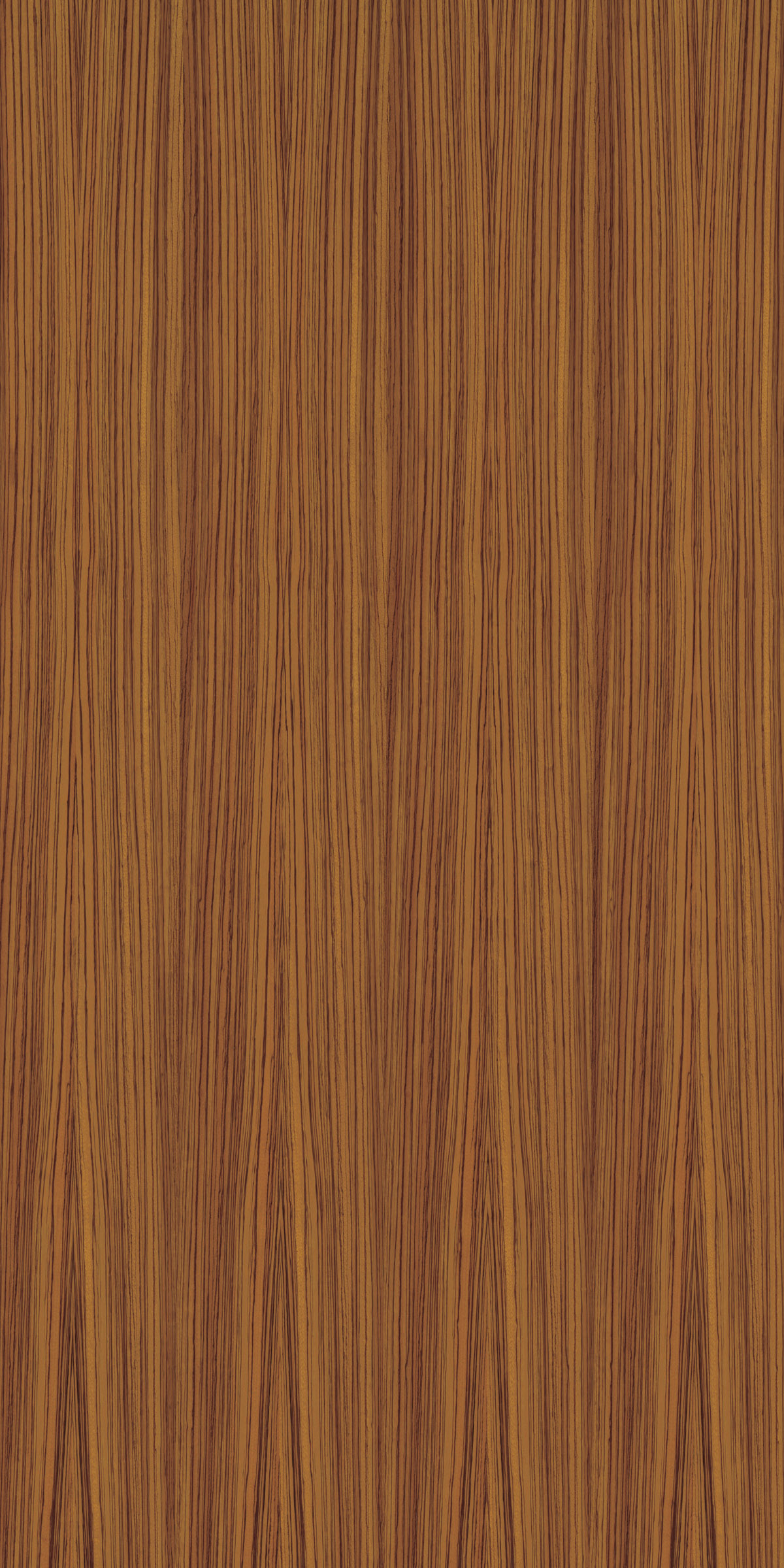

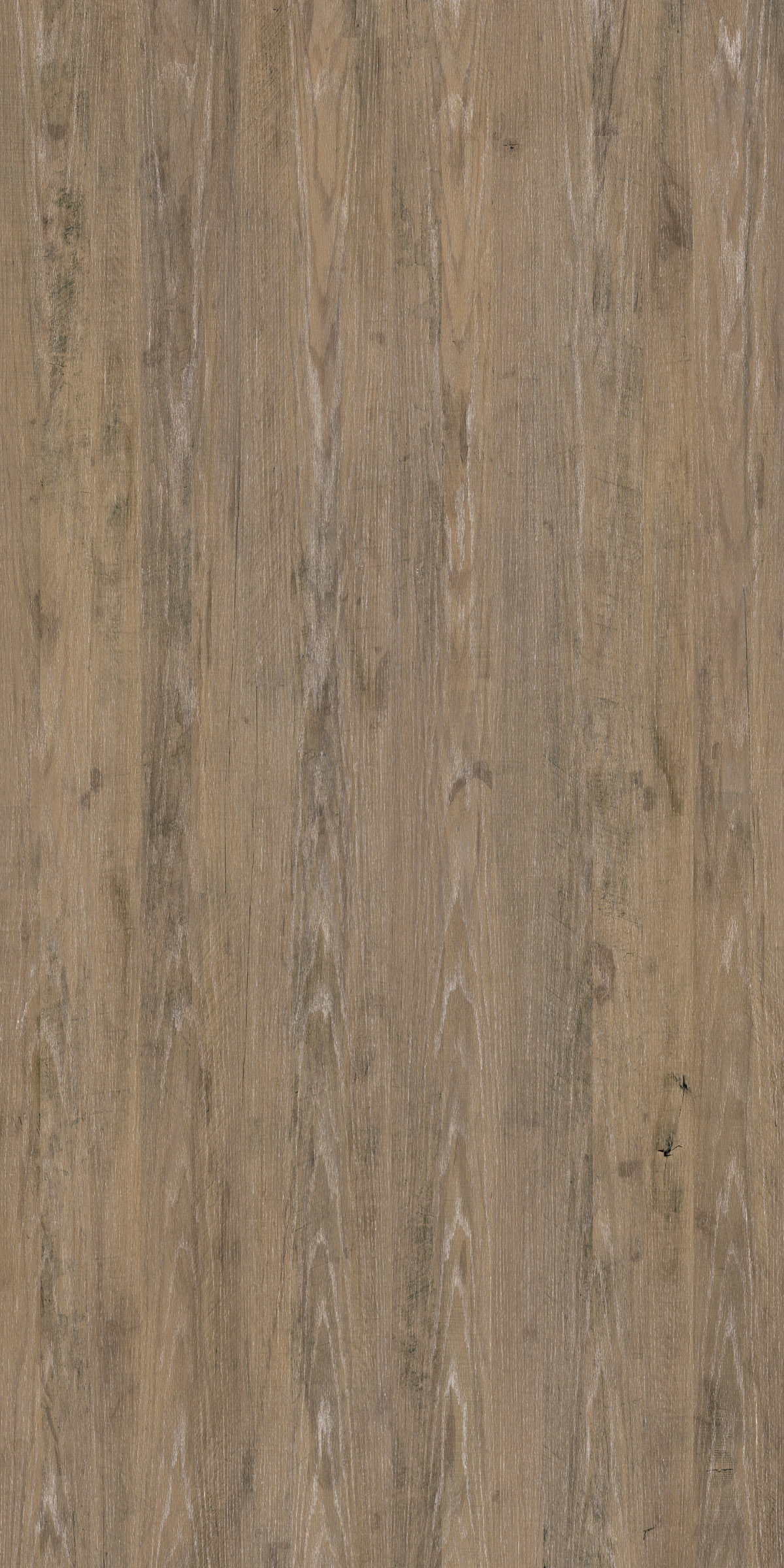

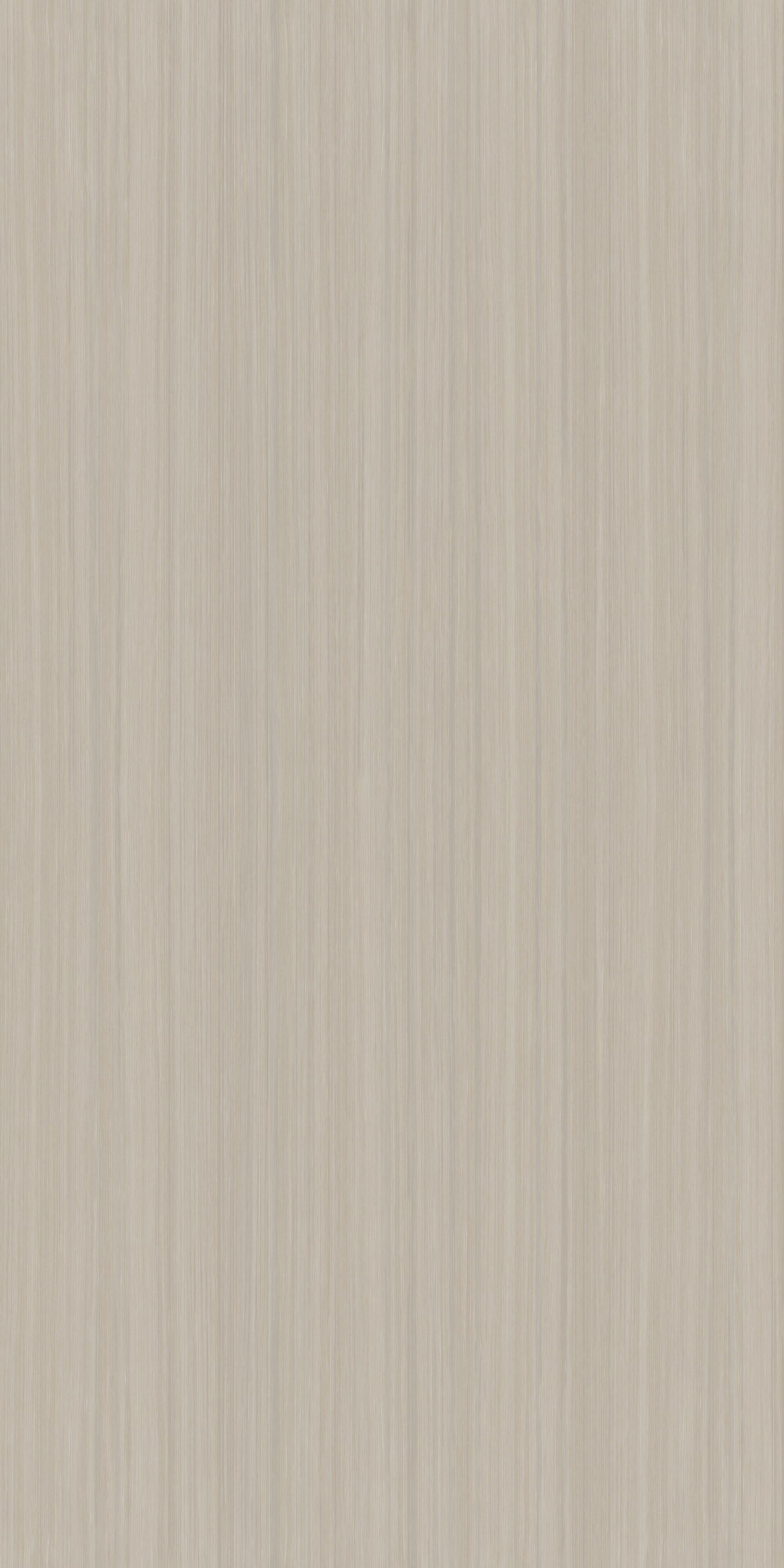

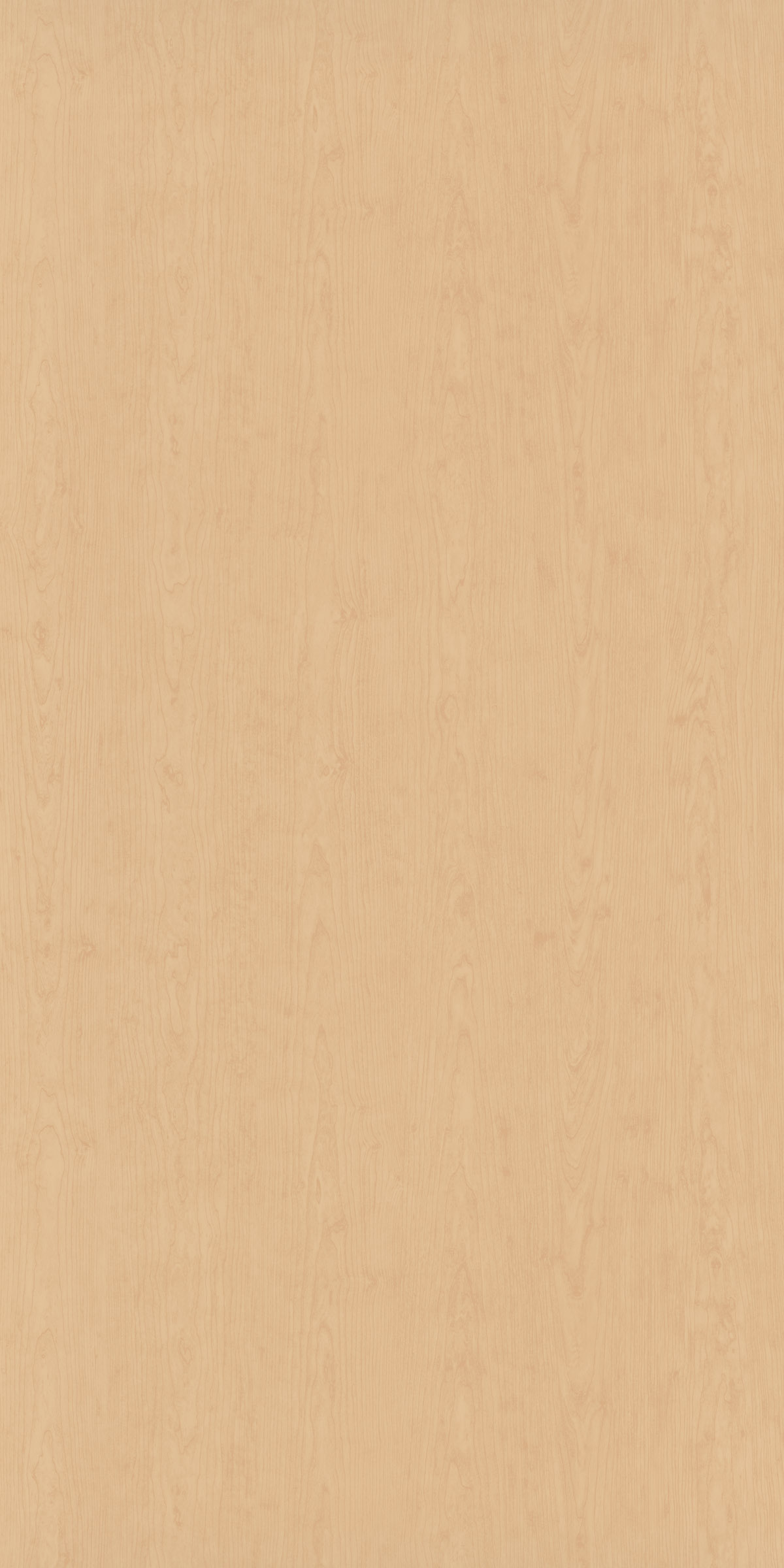

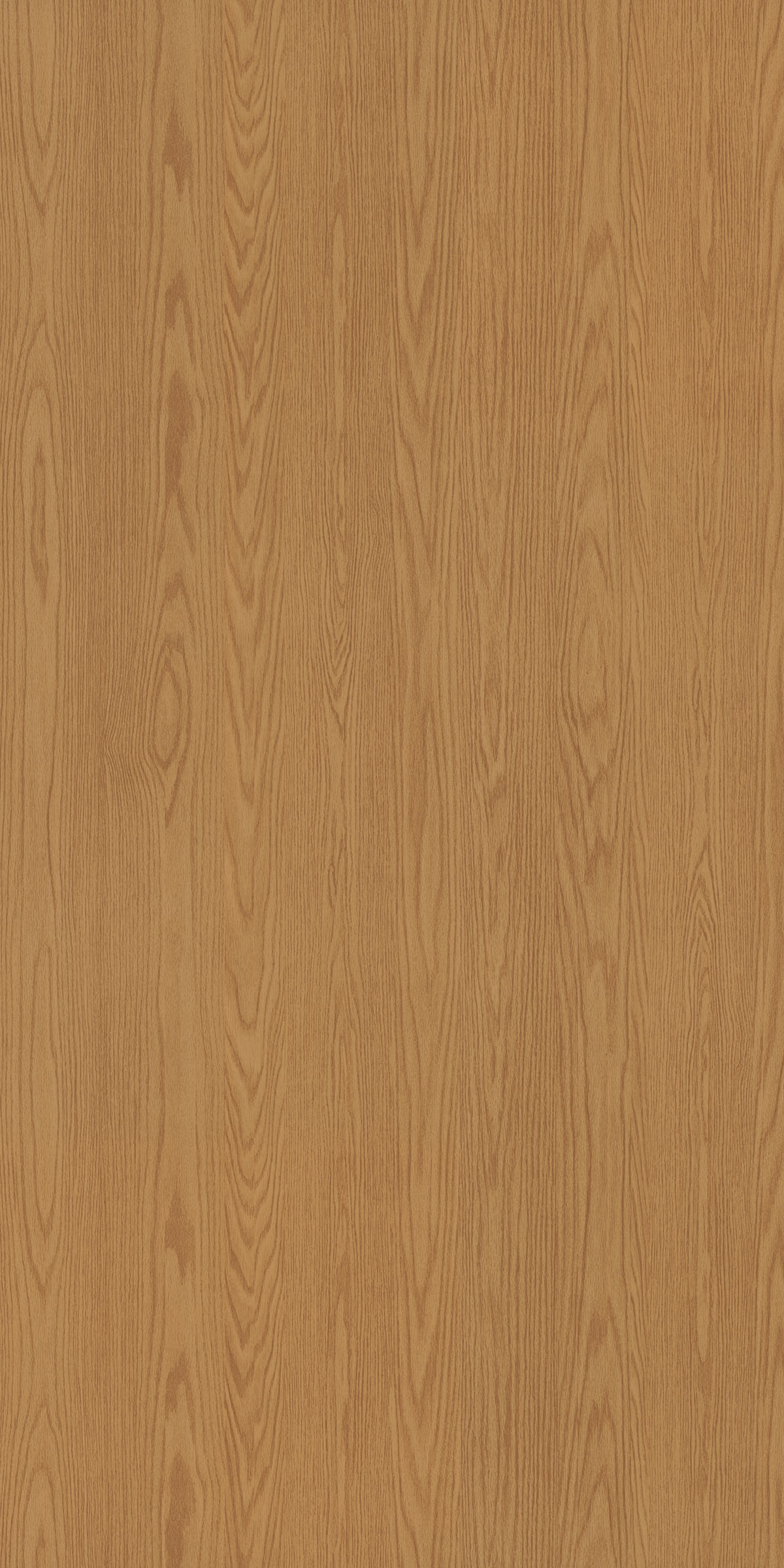

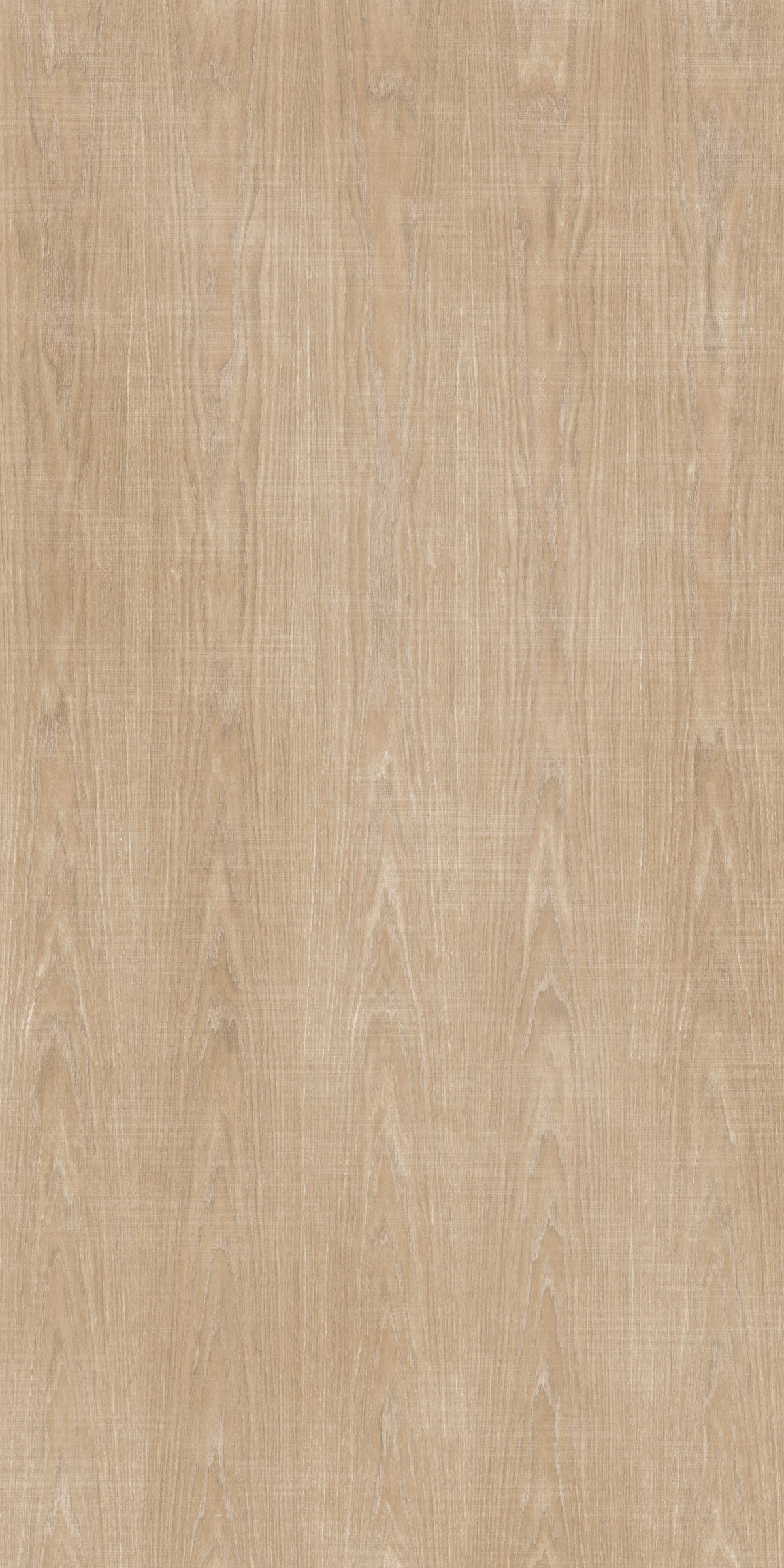

Artizan™ Max Woodgrains

Artizan™ Metal Finishes

Artizan™ Max Solid Painted Colors

Artizan™ Max Brick

Artizan™ Max Stone

Artizan™ Max Wood Planks

Artizan™ Max Marble

Artizan™ Max Concrete

Harmonizing Aluminum Trim

Durable painted aluminum trim molding harmonizes with any FRP finish.

Inside Corner A551
Outside Corner A560​
Edge A570
Division A565

Division molding is available but not required.

Anodized Aluminum Trim

Satin Anodized, Bright Anodized or Black Anodized aluminum trim molding for use with any FRP finish.

Inside Corner A551
Outside Corner A560
Edge A570
Division A565

Division molding is available but not required.

White PVC Trim

Length – 8′ and 10′ Material – Extruded PVC with integral color

Inside Corner M350​
Outside Corner M360
Edge M370​
135° Inside Corner V177
135° Outside Corner V179
Division M365

Division molding is available but not required.

Corner Guards

Our corner guards are engineered to withstand impact and wear in demanding commercial environments.

PVC Outside Corner M961
Stainless Steel Corner Guard F560SS

White PVC Trim

Length – 8′ and 10′ Material – Extruded PVC with integral color

Inside Corner M350​
Outside Corner M360
Edge M370​
135° Inside Corner V177
135° Outside Corner V179

Anodized Aluminum Trim

Satin Anodized, Bright Anodized or Black Satin Anodized aluminum trim molding for use with any FRP finish.

Inside Corner A551
Outside Corner A560
Edge A570

Harmonizing Aluminum Trim

Durable painted aluminum trim molding harmonizes with any FRP finish.

Inside Corner A551
Outside Corner A560​
Division A565
Edge A570

Designer Aluminum Trim

Available in Clear Satin Anodized or Harmonizing Color

Ribbed A566
Radius A567
Square Channel A568

Quick Specs

  1. Substrate: Fiberglass Reinforced Plastic (FRP)
  2. Fire Rating: Class III/C and I/A
  3. Panel dimensions: 4’x8’x3/32” & 4’x10’x3/32″ (nominal)
  4. Meets USDA/FSIS Requirements.
  5. Wipes clean with easily with standard cleaning solutions.
  6. Costs less than most tile, laminate, and natural materials.
